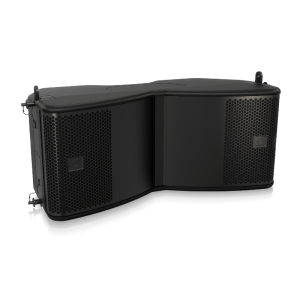

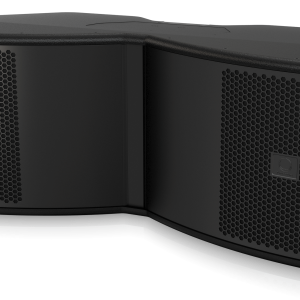

Turbosound MV212-XV Line Array Element

(1 customer review)

The Turbosound MV212-XV Line Array Element – Bi-amped 3-way full range is a compact dual 12″ 790-Watt that is ideally suited to a broad range of speech and music sound reinforcement applications in fixed installation, portable and touring audio systems.

$6,750.00

UPC: 4033653231114 SKU: TS-MV212-XV Category: Tags:
Turbosound Canada

Features of the Turbosound MV212-XV Line Array Element

  • Full size passive dual 12″ 3-way line array element for installation and touring applications
  • Dual 12″ low frequency transducers with lightweight neodymium motors
  • 1 x 1.4″ coaxial neodymium mid-high compression driver
  • Integral Dendritic waveguides for perfect line-source vertical plane coupling
  • 100° horizontal x 5 – 10° variable vertical curvature
  • 3 way bi-amplified operation
  • 790 Watts continuous, 3,160 Watts peak power
  • Seamless integration with Lab Gruppen amplifiers and Lake DSP for complete system solution
  • Advanced linear phase FIR processing for exceptional sound quality

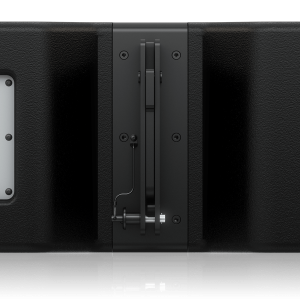

  • 3-point suspension system with advanced ergonomic design for rapid deployment and ease of use
  • Suspend up to 16 MV212-XV elements at 10:1 safety factor
  • Weather-resistant enclosure construction with durable semi matte black paint finish
  • Tour grade Neutrik SpeakON* STX NL4 connectors for input and link

Specifications

System
Frequency response (-3 dB)1 50 Hz – 20 kHz
Frequency response (-10 dB)1 35 Hz – 20 kHz
Nominal dispersion 100 degrees (H) x 5 degrees (V)
Power handling (IEC) LF: 600 W continuous, 2400 W peak
MHF: 190 W continuous, 760 W peak
Sensitivity LF: 101 dB (1 W @ 1 m)²
MHF: 114.5 dB (1 W @ 1 m)²
Maximum SPL 143 dB ³
Impedance LF: 8 Ω
MHF: 12 Ω
Crossover type External bi-amp
Components 2 x 12″ (315 mm) LF driver
1 x 1.4″ (35 mm) exit, Large Format Dual Concentric coaxial compression driver
Enclosure
Connectors 2 x speakON NLT4MP STX
Wiring Pins 1+ / 1- LF, pins 2+ / 2- MHF
Dimensions H x W x D 354 x 810 x 490 mm (13.9 x 31.9 x 19.3″)
Net weight 50 kg (110.2 lbs)
Construction 15 mm (enclosure) and 18 mm (front) marine birch plywood, vented and internally braced
Finish Polyurethane black, with custom colours on request
Grille Powder coated perforated steel
Flying hardware 3 point rigging system
Accessories MAN-FG fly grid
MV212-VT



Brand

Turbosound

For over 40 years Turbosound has repeatedly shown award-winning innovation and leadership in the world of high end professional audio, producing landmark products that have defined and shaped the live industry.

GTR Direct is a proud dealer for Turbosound Canada
Turbosound Canada
