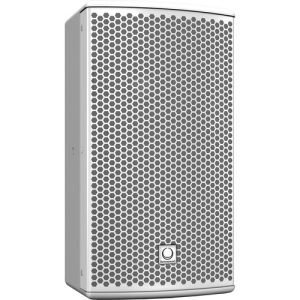

Turbosound NuQ62-WH Full Range Loudspeaker

(1 customer review)

The Turbosound NuQ62-WH Full Range Loudspeaker – 2-way full range compact passive 600 Watt 6.5″ loudspeaker system ideally suited for a wide range of speech and music sound reinforcement applications.

$420.00

UPC: 4033653103466 SKU: TS-NUQ62-WH Category: Tags:
Turbosound Canada

Features of the Turbosound NuQ62-WH Full Range Loudspeaker:

  • 2 way full range loudspeaker for portable PA and installation applications
  • 150 Watts continuous, 600 Watts peak power
  • Ideal for front fill and monitor applications
  • 6.5″ low frequency driver with low mass voice coil for improved transient response
  • Aluminium dome 1″ neodymium motor compression driver
  • Rotatable converging elliptical waveguide provides 100? H x 60? V dispersion
  • 12 mm (1/2″) birch plywood enclosure with hard wearing semi matt white paint finish
  • Rugged powder coated perforated steel mesh grille
  • Multiple internal rigging points allow bracket mount and suspension in any orientation
  • Neutrik speakON* NL4 connectors for reliable long life operation
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.



Specifications

System
Frequency Response 80 Hz – 18 kHz ±3 dB
65 Hz – 20 kHz -10 dB
Nominal Dispersion 100° H x 60° V @ -6 dB points, rotatable
Directivity Factor (Q) 8
Directivity Index (DI) 9
Power Handling (IEC)
Sensitivity 88 dB (1 W @ 1 m)
Maximum SPL
Impedance
Passive 16 O
Bi-Amp N/A
Crossover Type Passive
Components 1 x 6″ (162 mm) LF Driver
1 x 1″ (25 mm) HF Compression Driver
Enclosure

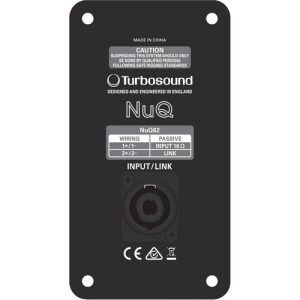

Connectors 3 x Neutrik speakON* NL4
Wiring
Dimensions (H x W x D) 350 x 210 x 190 mm (13.8 x 7.5 x 8.3″)
Net Weight 6.3 kg (13.6 lbs)
Construction 12 mm (½”) birch plywood
Finish Semi matt white paint
Grille Powder-coated perforated steel
Flying Hardware M8 x 6 points
Accessories
NuQ62-SB
NuQ62-FY



Brand

Turbosound

For over 40 years Turbosound has repeatedly shown award-winning innovation and leadership in the world of high end professional audio, producing landmark products that have defined and shaped the live industry.
