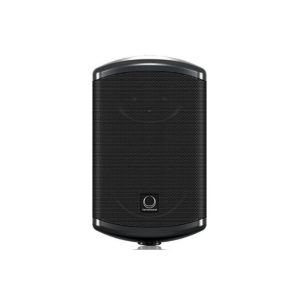

Turbosound Pair of TCI32-T-WH Full Range Loudspeakers
December 8, 2021
Turbosound TCI52-TR Full Range Loudspeaker
December 8, 2021Features of the Turbosound TCI52-T Full Range Loudspeakers:
- Pair of compact 2 way full range surface-mount loudspeakers for installation applications
- 60 Watts continuous, 240 Watts peak power
- High excursion 5″ low frequency driver with high temperature voice coil
- 1″ ferrofluid cooled neodymium high frequency driver
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Proprietary elliptical waveguide provides wide 100? H x 70? V dispersion
- Wall-mount bracket with integral loudspeaker connections included
- Architecturally styled glass filled impact resistant enclosure
- Semi matt black finish fits unobtrusively in any environment
- 2 x M6 rigging points compatible with Turbosound and OmniMount* brackets
- 3/8″ mic stand fitting for spot monitor applications
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Specifications
System
Frequency response | 74 Hz – 20 kHz ±3 dB 43 Hz – 20 kHz -10 dB |
Nominal dispersion | 100° H x 70° V @ -6 dB points |
Power handling (IEC) | |
Sensitivity | 90 dB (1 W @ 1 m) |
Maximum SPL | |
Impedance | 16 O |

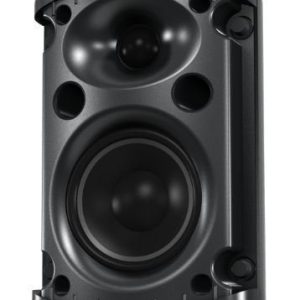

Components | 1 x 5″ (127 mm) LF driver 1 x 1″ (25 mm) HF soft dome driver |
Enclosure

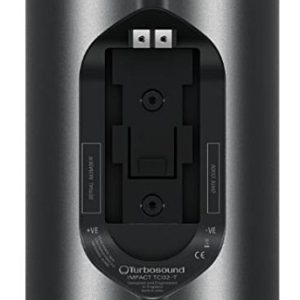

Connectors | Screw terminal block |
Wiring | Input +VE, -VE |
Dimensions (H x W x D) | 300 x 164 x 158 mm (11.8 x 6.5 x 6.2″) |
Net weight | 3.5 kg (7.7 lbs) |
Construction | Gas injected, glass-filled moulded ABS enclosure |
Finish | Black (white optional) |
Grille | Powder coated perforated steel |
Flying hardware | M6 x 2 points |
Accessories
Wall bracket – included |
Chris Black –
Great loudspeaker
