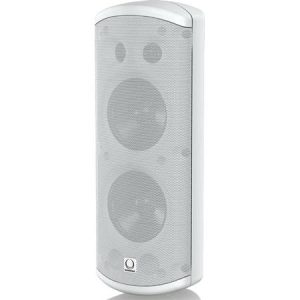

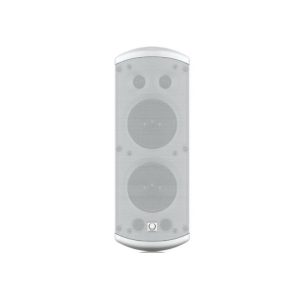

December 9, 2021Features of the Turbosound TCI53-TR-WH Full Range Loudspeaker:
- Compact 2 way full range surface-mount loudspeaker for installation applications
- 120 Watts continuous, 480 Watts peak power
- High excursion dual 5″ low frequency drivers with high temperature voice coil
- Dual 1″ ferrofluid cooled neodymium high frequency drivers
- Multiple transformer taps for 70V and 100V line systems or 8 Ohm direct input
- Weather resistant plated perforated grille with powder coating for outdoor use
- Proprietary elliptical waveguide provides wide 100? H x 70? V dispersion
- Wall-mount bracket with integral loudspeaker connections included
- Architecturally styled glass filled impact resistant enclosure
- Semi matt white finish fits unobtrusively in any environment
- 2 x M6 rigging points compatible with Turbosound and OmniMount* brackets
- 3/8″ mic stand fitting for spot monitor applications
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Specifications
System
Frequency response | 74 Hz – 18 kHz ±3 dB 43 Hz – 20 kHz -10 dB |
Nominal dispersion | 100° H x 70° V @ -6 dB points |
Power handling (IEC) | |
Sensitivity | 90 dB (1 W @ 1 m) |
Maximum SPL | |
Impedance | 8 O |
Components | 2 x 5″ (127 mm) LF driver 2 x 1″ (25 mm) HF soft dome driver |
Enclosure
Connectors | Screw terminal block |
Wiring | Input +VE, -VE |
Dimensions (H x W x D) | 450 x 164 x 158 mm (17.7 x 6.5 x 6.2″) |
Net weight | 5.0 kg (11.0 lbs) |
Construction | Gas injected, glass-filled moulded ABS enclosure |
Finish | White (black optional) |
Grille | Powder coated perforated Zinc plated steel |
Flying hardware | M6 x 2 points |
Accessories
Wall bracket – included |
