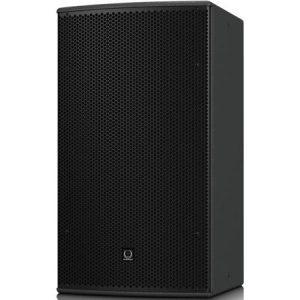

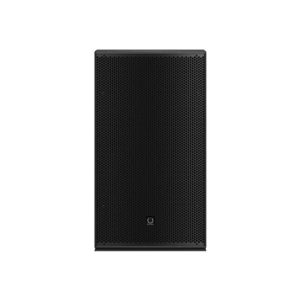

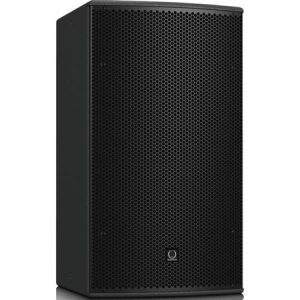

Turbosound TCS115B-WH Front Loaded Subwoofer
December 9, 2021Features of the Turbosound TCS115B Front Loaded Subwoofer
- Front loaded subwoofer for installation applications
- 500 Watts continuous, 2,000 Watts peak power
- Double suspension 15″ low frequency driver with inside/outside wound coil
- Low distortion bass reflex port design
- 15 mm (5/8) birch plywood enclosure with hard wearing semi matt black paint finish
- Architecturally styled powder coated perforated steel mesh grille
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- Neutrik speakON* NL4 and barrier strip connectors
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Specifications
System
Frequency Response | 45 Hz – 150 Hz ±3 dB 40 Hz – 200 Hz -10 dB |
Nominal Dispersion | Half space |
Power Handling (IEC) | 500 W continuous, 2000 W peak |
Sensitivity | 97 dB (1 W @ 1 m) |
Maximum SPL | 124 dB continuous, 130 dB peak |
Impedance | 8 O |
Components | 1 x 15″ (387 mm) LF driver |
Enclosure
Connectors | 1 x Neutrik speakON* NL4 1 x Barrier strip terminals |
Wiring | |
Dimensions (H x W x D) | 834 x 469 x 452 mm (32.9 x 18.5 x17.8″) |
Net Weight | 32.7 kg (72.0 lbs) |
Construction | 15 mm (5/8″) birch plywood |
Finish | Semi matt black paint |
Grille | Powder-coated perforated steel |
Flying Hardware | M10 x 8 |
Accessories
TCS115-FP (WH) fly plate kit for TCS115 TCS-FK2 (WH) inter-cabinet coupler kit for TCS115B with TCS122 or TCS152 TCS-FK3 (WH) inter-cabinet coupler kit for TCS115B |
