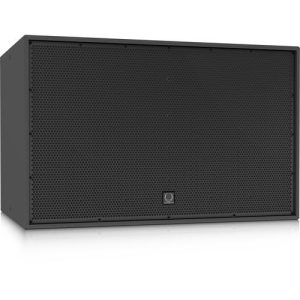

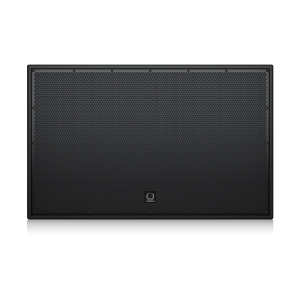

Turbosound TCS218B-AN Front Loaded Subwoofer
December 10, 2021Features of the Turbosound TCS218B Front Loaded Subwoofer
- Dual front loaded subwoofer for installation applications
- 1,600 Watts continuous, 6,400 Watts peak power
- Double suspension 18″ low frequency drivers with inside/outside wound coils
- Low distortion bass reflex port design
- 18 mm (3/4?) birch plywood enclosure with hard wearing semi matt black paint finish
- Architecturally styled powder coated perforated steel mesh grille
- Multiple internal rigging points allow secure mounting for installation
- Neutrik speakON* NL4 and barrier strip connectors
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Specifications
System
Frequency Response | 33 Hz – 200 Hz ±3 dB 27 Hz – 200 Hz -10 dB |
Nominal Dispersion | Half space |
Power Handling (IEC) | 1600 W continuous, 6400 W peak |
Sensitivity | 99 dB (1 W @ 1 m) |
Maximum SPL | 131 dB continuous, 137 dB peak |
Impedance | Parallel: 4 O Discrete: 8 O x 2 |
Components | 2 x 18″ (460 mm) LF driver |
Enclosure
Connectors | 1 x Neutrik speakON* NL4 1 x barrier strip terminals |
Wiring | |
Parallel / No switch | Pins 1+ / 1- input, pins 2+ / 2- link |
Discrete | Pins 1+ / 1- input 1, pins 2+ / 2- input 2 |
Dimensions (H x W x D) | 710 x 1130 x 730 mm (28.0 x 44.5 x 28.8″) |
Net Weight | 93.5 kg (205.7 lbs) |
Construction | 18 mm (5/8″) birch plywood |
Finish | Semi matt black |
Grille | Powder-coated perforated steel |
Flying Hardware | M10 x 8 |
