December 10, 2021Features of the Turbosound TCS62-WH Full Range Loudspeaker:
- Arrayable 2 way full range loudspeaker for installation applications
- 175 Watts continuous, 700 Watts peak power
- Carbon fibre loaded 6.5″ low frequency driver with low mass coil for improved transient response
- Aluminium dome 1″ neodymium motor compression driver
- Rotatable converging elliptical waveguide provides 100? H x 60? V dispersion
- Multiple array configurations for extended coverage
- Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
- Multiple internal rigging points allow bracket mount and suspension in any orientation
- 12 mm (5/8″) birch plywood enclosure with hard wearing semi matt white paint finish
- Architecturally styled powder coated perforated steel mesh grille

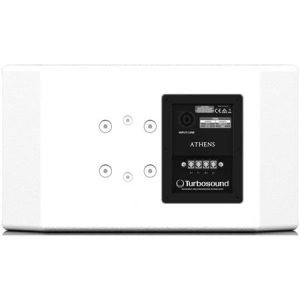

- Neutrik speakON* NL4 and barrier strip connectors
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Specifications
System
Frequency Response | 60 Hz – 20 kHz ±3 dB 50 Hz – 20 kHz -10 dB |
Nominal Dispersion | 100° H x 60° V @ -6dB points, rotatable |
Directivity Factor (Q) | 12.8 |
Directivity Index (DI) | 11.1 |
Power Handling (IEC) | |
Sensitivity | 90 dB (1 W @ 1 m) |
Maximum SPL | |
Impedance | |
Passive | 8 O |
Crossover Type | Passive |
Components | 1 x 6″ (162 mm) LF driver 1 x 1″ (25 mm) HF compression driver |
Enclosure
Connectors | 1 x Neutrik speakON* NL4 1 x barrier strip terminals |
Wiring | |
Dimensions (H x W x D) | 224 x 402 x 198 mm (8.8 x 15.8 x 7.8″) |
Net Weight | 6.9 kg (15.2 lbs) |
Construction | 12 mm (½”) birch plywood |
Finish | Semi matt white paint |
Grille | Powder coated perforated steel |
Flying Hardware | M8 X 8, M6 X 2 points |
Accessories
TCS62-SB Swivel Bracket for TCS62 |
