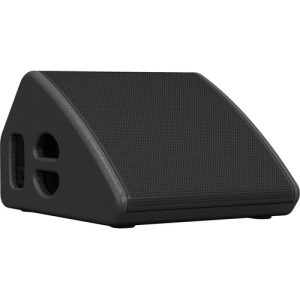

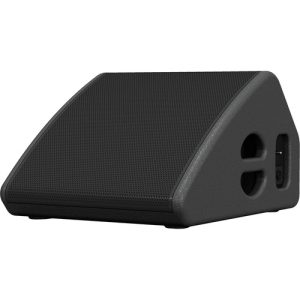

Turbosound TFM122M Stage Monitor

(1 customer review)

The Turbosound TFM122M Stage Monitor switchable passive/bi-amp 1,400 Watt 12″ loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications.

$1,485.00

UPC: 4033653105361 SKU: TS-TFM122M Category: Tags:
Turbosound Canada

Features of the Turbosound TFM122M Stage Monitor:

  • 2 way stage monitor for touring applications
  • 350 Watts continuous, 1,400 Watts peak power
  • Carbon fibre loaded 12″ neodymium motor low frequency driver
  • Titanium dome 1.4″ neodymium motor compression driver
  • Low profile design to maximise audience sight lines
  • Low distortion waveguide provides 60 H x 40 V dispersion
  • Switchable passive/bi-amp operation for flexibility of use
  • 15 mm (5/8″) plywood enclosure with fiberglass reinforced composite end cheeks
  • Hard wearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Durable handle for easy lifting and carrying
  • Neutrik speakON* NL4 connectors for reliable long life operation
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.



Specifications

System
Frequency Response 70 Hz – 18 kHz ± 3 dB
63 Hz – 20 kHz -10 dB
Nominal Dispersion 60° H x 40° V @ -6 dB points, rotatable
Directivity Factor (Q) 18.3
Directivity Index (DI) 12.6
Power Handling (IEC)
Sensitivity 96 dB (1 W @ 1 m)
Maximum SPL
Impedance
Crossover Type Passive / bi-amp, switchable
Components 1 x 12″ (315 mm) LF driver
1 x 1.4″ (33 mm) HF compression driver
Enclosure
Connectors 2 x Neutrik speakON NL4,
Wiring
Dimensions (H x W x D) 302 x 452 x 504 mm (11.9 x 17.8 x 19.9″)
Net Weight 15.5 kg (34.1 lbs)
Construction 15 mm (5/8″) birch plywood + Polypropylene plastic
Finish Semi matt black paint
Grille Powder coated perforated steel
Flying Hardware N/A



Brand

Turbosound

For over 40 years Turbosound has repeatedly shown award-winning innovation and leadership in the world of high end professional audio, producing landmark products that have defined and shaped the live industry.

GTR Direct is a proud dealer for Turbosound Canada
Turbosound Canada
