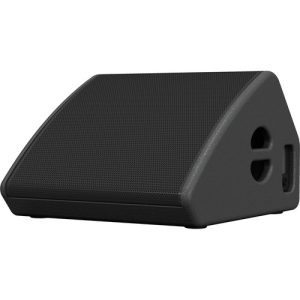

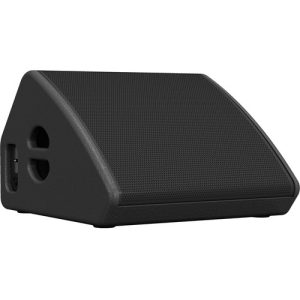

Turbosound TFM122M Stage Monitor
December 13, 2021
Turbosound TFM122M-AN Stage Monitor
December 13, 2021Features of the Turbosound TFM152M Stage Monitor:
- 2 way stage monitor for touring applications
- 350 Watts continuous, 1,400 Watts peak power
- Carbon fibre loaded 15″ neodymium motor low frequency driver
- Titanium dome 1.4″ neodymium motor compression driver
- Low profile design to maximise audience sight lines
- Low distortion waveguide provides 60 H x 40 V dispersion
- Switchable passive/bi-amp operation for flexibility of use
- 15 mm (5/8″) plywood enclosure with fiberglass reinforced composite end cheeks
- Hard wearing semi matt black paint finish
- Rugged powder coated perforated steel mesh grille
- Durable handle for easy lifting and carrying
- Neutrik speakON* NL4 connectors for reliable long life operation
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Specifications
System
Frequency Response | 65 Hz – 18 kHz ± 3 dB 50 Hz – 20 kHz -10 dB |
Nominal Dispersion | 60° H x 40° V @ -6 dB points, rotatable |
Directivity Factor (Q) | 18.3 |
Directivity Index (DI) | 12.6 |
Power Handling (IEC) | |
Sensitivity | 96 dB (1 W @ 1 m) |
Maximum SPL | |
Impedance | |
Crossover Type | Passive / bi-amp, switchable |
Components | 1 x 15″ (393.5 mm) LF driver 1 x 1.4″ (33 mm) HF compression driver |
Enclosure
Connectors | 2 x Neutrik speakON NL4, |
Wiring | |
Dimensions (H x W x D) | 351 x 530 x 565 mm (13.8 x 20.9 x 22.3″) |
Net Weight | 19.4 kg (42.7 lbs) |
Construction | 15 mm (5/8″) birch plywood + Polypropylene plastic |
Finish | Semi matt black paint |
Grille | Powder coated perforated steel |
Flying Hardware | N/A |
