6 Way Square Truss Junction Block – Includes 4 Way 16 Half Conical Couplers
ProX XT-JB6W-4W 6 Way Square Truss Junction Block – Includes 4 Way 16 Half Conical Couplers

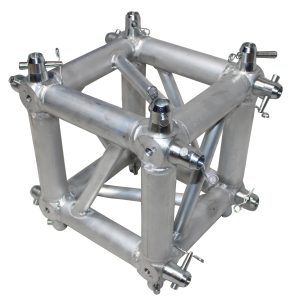

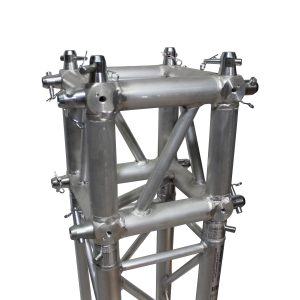

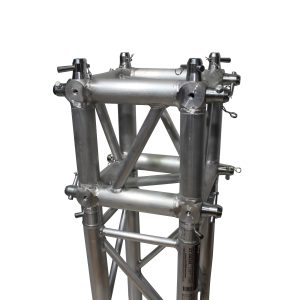

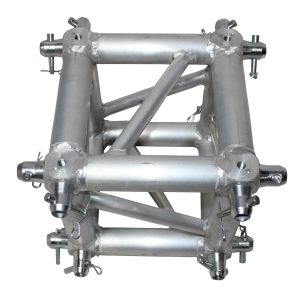

The ProX XT-JB6W-4W Square Truss Junction Block is a universal connecting point for F34 trusses, and it’s equipped with connecting hardware for use with ProX XT F34 square truss components. It features 2″ outer diameter tubing and 3/4″ diagonal bracing. It has XT Series 3mm thick tube walls, this truss junction block is strong and can be used for many applications. It is built to the highest standards of safety and performance.
16 Half Conical couplers included, additional conical couplers can be added for more utility. (Sold Separately XT-CA-103P)
Always know your load weight for your equipment:Â VERY IMPORTANT – CLICK HEREÂ for Truss Loading Chart.
- Tolerance Free Standard Conical connector
- Main tube wall thickness of .11in
XT-SQ SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb per 3.28 ft / 9,5kg per meter
- Main Tube: 2in / 50mm
- Wall Thickness:Â .11in / 3mm
- Braces: .75in / 20mm
Includes Half Couplers for 4 Side Connections
- Manufactured in our Own Factory!
- Material: EN-AWT6 6082 Aluminum
- TUV Certified Aluminium Welding
TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

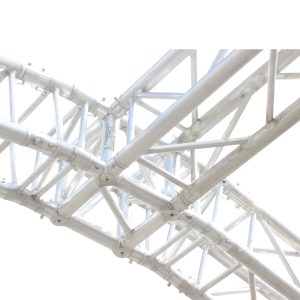

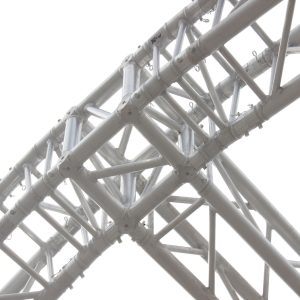

Standard F34 Square Truss Configurations.
| Weight | 17.5 lbs |
|---|---|
| Dimensions | 12.5 × 12.5 × 12.5 in |
