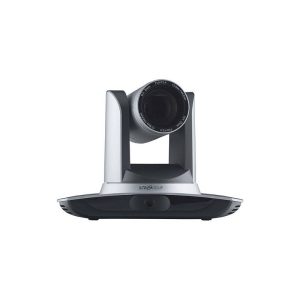

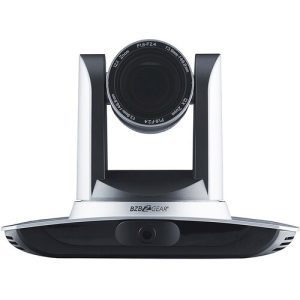

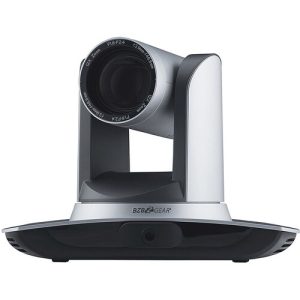

BZB Gear PTZ 12X Zoom Full HD SDI Auto Trackable Live Streaming Camera

Features of the BZB Gear PTZ 12X Zoom Full HD SDI Auto Trackable Live Streaming Camera:

• 1/2.8″ 2.07MP HD CMOS Sensor
• Dual 3G-SDI & IP Streaming Output
• 12x Optical Zoom, 10x Digital Zoom
• Capture up to 1080p Video
• ±170° Pan Range
• -30 to 90° Tilt Range
• Embedded Audio & 3.5mm Stereo Analog In
• RS-232 VISCA/Pelco-P/D Serial Control
• RTSP/RTMP/ONVIF Streaming, H.265/H.264

Specifications:

Image Sensor
Image Sensor 1-Chip 1/2.8″ CMOS Sensor
Sensor Resolution Effective: 2.07 Megapixel (1920 x 1080)
Signal-to-Noise Ratio 55 dB
Minimum Illumination 0.5 Lux
White Balance 3000 to 6500K
Camera
Max Digital Zoom 10x
Built-In ND Filter None
Flip / Mirror Support Image Flip
Lens
Optical Zoom Ratio 12x
Focal Length 3.9 to 46.1mm
Field of View Horizontal: 6.3 to 72.5°
Maximum Aperture f/1.8 to 2.4
Focus Control Autofocus
Manual Focus
Video Output
Output Formats SDI, RJ45: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps
Embedded Audio SDI: 2-Channel
IP Streaming H.264, H.265, ONVIF, RTMP, RTSP: 1080p, 720p at 25p, 29.97p, 30p, 50p, 59.94p, 60p
IP Multi-Stream Support Yes
Recording
Audio Recording None
Control
Presets 255 via IP, RS-232, VISCA
10 via IR
Move Speed Pan: 0.1 to 100°/sec
Tilt: 0.1 to 45°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols IP
Pelco-D
Pelco-P
RS-232
RS-485
VISCA
Interfaces

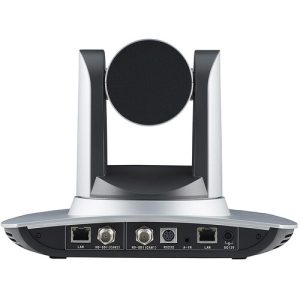

Video Output Connectors 2 x BNC (3G-SDI / HD-SDI) Female
1 x RJ45 Female
Audio I/O 1 x 1/8″ / 3.5 mm Stereo Line Level Input
Control Interface 1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Input
Other I/O 1 x RJ45 (LAN) Input/Output
Power
PoE Support None
Power Connectors 1 x Barrel / Coaxial (12 VDC up to 1.5 A)
Power Consumption Power Supply: 12 VDC at 2.5 A (18 W)
Power Supply: 110 to 220 VAC
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 20 to 80%
Storage Humidity 20 to 95%
General
Dimensions 10 x 6.9 x 5.7″ / 254 x 174 x 144 mm
Weight 3.3 lb / 1.5 kg
