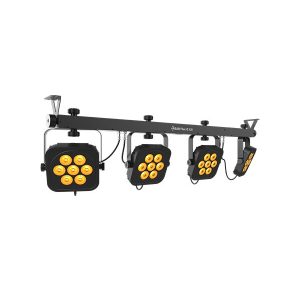

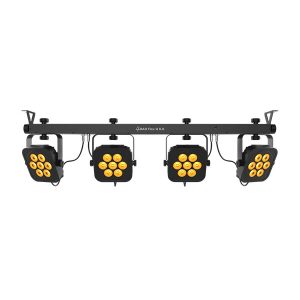

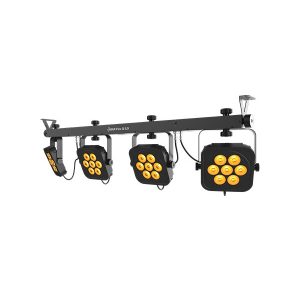

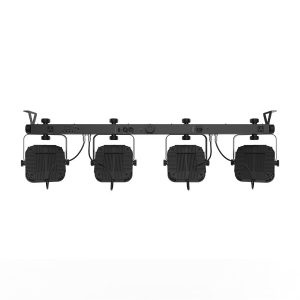

Complete wash lighting convenience reaches new heights with 4BAR Flex Q ILS. This all-in-one system is fitted with four par fixtures on one bar.
$905.99
UPC: 781462223519UPC: 781462223519
Tags: Carrying BagChauvet DJDMX Channelsfoot switchLEDRGBAWash Light SystemCategories: LED Bars, PAR Can Lights | LED Bars, Static LightsSKU: 4BARFLEXQILS
Brand: Chauvet DJFeatures of the Chauvet DJ 4Bar Flex Q ILS LED Wash Light System:
- Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
- ILS compatibility for use in the ILS ecosystem

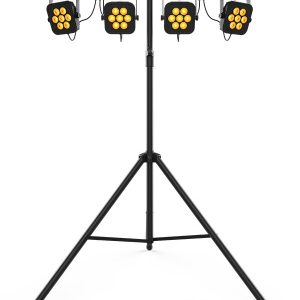

- Mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- D-Fi USB compatibility for wireless master/slave or DMX control
- Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4Bar Flex Q
- Provide electricity to the additional lights by using the built-in Edison plugs
- Maximize setup possibilities and configurations with 2 included L-brackets
- Easily set up and tear down in minutes with the included carrying bag
- Multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6 remote
- Safely mounts to truss using built-in bolts
Specifications
- DMX Channels – 4, 6 or 19
- DMX Connectors – 3-pin XLR
- Max Unobstructed Distance – 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
- Strobe Rate – 0 to 20 Hz
- Beam Angle – 14°
- Field Angle – 23°
- Illuminance – 2,353 lux @ 2 m (per pod)
- Input Voltage – 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current
- Approvals – CE, RoHS, UKCA
- Operating Frequency (D-Fi) – 2.412 to 2.484 GHz
- Operating Frequency (foot switch) – 433 MHz
- Max Unobstructed Distance (foot switch) – 100 ft (30.5 m)
- Footswitch battery – 9 V
- Fits Tripod Sizes – 1.5 in (36.80 mm)
- Bracket Mounting Hole – M10 (1.5 mm pitch)
- Weight – 12.2 lb (5.5 kg)
- Weight (Controller) – 1.2 lb (0.6 kg)
- Size – 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
- Size (Controller) – 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
- Included controller – IRC-6
- Optional controller – D-Fi USB
80 W, 1.2 A @ 120 V, 60 Hz
78 W, 0.6 A @ 230 V, 50 Hz

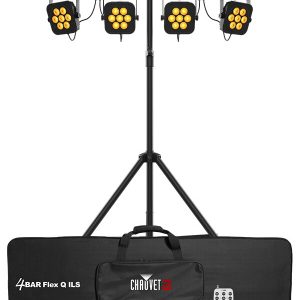

What’s Included
- 4Bar Flex Q ILS
- Power cord
- Carrying bag
- Wireless footswitch
- IRC-6 remote
- Quick Reference Guide
