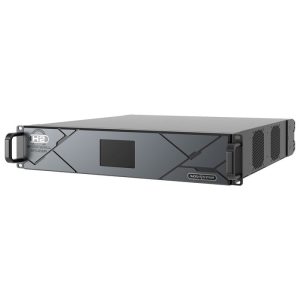

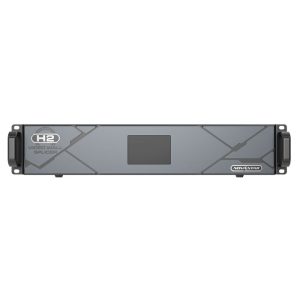

NovaStar H2 All-In-One Splicer and Controller
The H2 is an all-in-one solution which combines video splicing features with LED processing in one housing. The modular design works with hot-swappable plug-in modules that allow for a flexible configuration of input and output cards.
$978.60
Features of the NovaStar H2 All-In-One Splicer and Controller:
Chassis: 2U
Max Loading Capacity: (LED 4K sending card) 26 million pixels
Max Input Cards: 4
Max Output Cards: 2
Specifications:

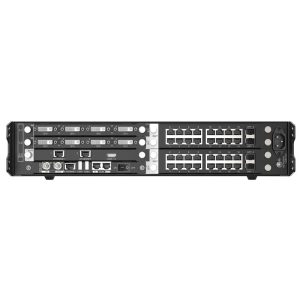

- Inputs cards available:
-
4x DVI card
-
4x HDMI card (2x HDMI 1.3 + 2x HDMI 1.4a)
-
1x HDMI 2.0 + 1x DP 1.2 card (Only one connector can be used at a time)
-
2x RJ45 Gigabit Ethernet card + 1x USB input
-
4x 3G-SDI card
-
1x 12G SDI IN + 1x 12G SDI Loop
-
Analog (VGA) card
-
2x DP1.1 card
-
1x HDMI 2.0
-
2x HDMI 2.0
- Output Cards:
-
Monitor output (MVR) card with 2x RJ45 Gigabit ethernet and 1x HDMI 1.3 monitor output
-
16x RJ45 + 2x Fiber output card. 10,400,000 pixels loading capacity per card with a max width of 10,240 pixels and a max height of 10,240 pixels
-
20x RJ45 output card. 13,000,000 pixels loading capacity per card with a max width of 10,752 pixels and a max height of 10,752 pixels
