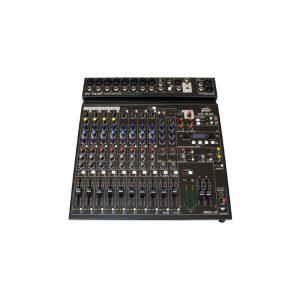

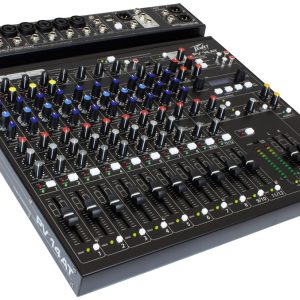

Peavey PV 14 AT 14 Channel Compact Mixer

Features of the Peavey PV 14 AT 14 Channel Compact Mixer:

• New rugged, slim, low-profile console design
• Convenient tablet cradle
• Four channels of Antares Auto-Tune
• Eight combination XLR – 1/4″ low noise mic preamps
• Selectable Hi Pass filter on first 8 inputs
• 3-band EQ on all channels
• Eight channels of Peavey’s exclusive MidMorph® EQ
• EQ bypass per channel
• Four channels of built-in compression
• Individual channel mutes
• Individual Listen/Solo function
• LED clip and signal present indication
• Eight channels of direct out
• Stereo pan control per channel
• Channel 9/10 stereo 1/4″, RCA, or 3.5 mm input channel
• Dual selectable control room outputs
• One pre-fader AUX send
• KOSMOS® bass and treble enhancement
• Main stereo outputs with 1/4″ unbalanced and balanced XLR connectors
• Precision 60mm faders
• High quality master LED meter bridge
• Master mic mute
• Studio quality headphone output
• Equipped with Bluetooth wireless connectivity, Bluetooth 3.0 + EDR, A2DP
• On-board USB-A MP3 and WAV playback
• Stereo USB-B streaming audio in and out, 16-bit, up to 48 kHz sample rates
• Built-in digital effects with LCD display
• Peavey’s exclusive on-board Hi Z guitar input
• Global 48V phantom power

Specifications:

Channels (Input)
14

Channels (Output)
5

Bluetooth
Yes

USB Playback & Record
Yes

Internal Effects Engines
Yes

Input Connectors
1 x 3.5 mm Stereo Jack, 1 x Dual RCA & 1 x USB A, 2 x 1/4″ Stereo Jack, 8 x XLR Combo

Output Connectors
1 x Dual RCA, 3 x 1/4″ Jack, 3 x XLR

Footswitch
Yes

AUX Out
Yes (1 x XLR & 1 x 1/4″ Jack)

Main Out
2 x XLR & 2 x 1/4″ Jack

Phantom Power
Yes (48V)

Headphones Output
Yes (1 x 1/4″ with level control)

Rack Mount (19″)
Optional

Color
Black

Net Weight
12.2 lbs (5.52 kg)

Product Height
2.19″ (56 mm)

Product Width
16.19″ (411 mm)

Product Depth
17.30″ (439 mm)

AC Power Input
Universal Power Supply 100-240VAC 50/60 Hz
