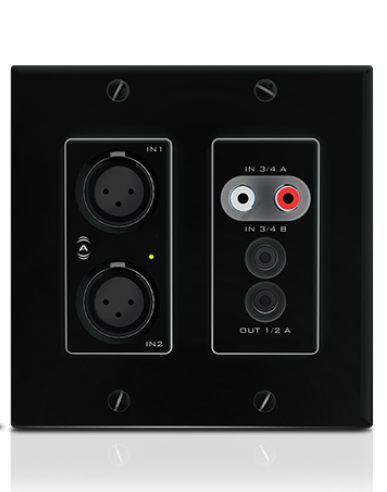

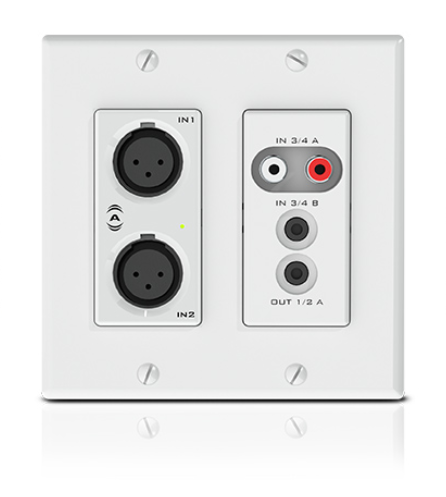

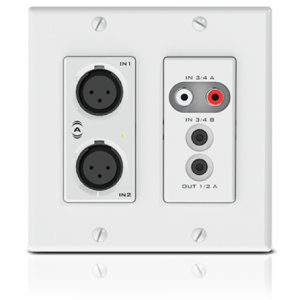

Q-SYS unD6IO Multi-IO Dante Network Audio Wall Plate

Attero Tech unD6IO is a versatile Dante network audio interface designed to seamlessly integrate analog audio equipment into Dante or AES67 audio networks.

$1,911.00

Features of the Audio Wall Plate:

  • Two balanced XLR mic/line inputs with software-selectable gain settings (-18 dB, -3 dB, +25 dB, +40 dB)
  • Two unbalanced stereo line inputs: one on RCA connectors, one on a 3.5 mm TRS connector
  • Two balanced line outputs on a side-mounted 6-pin de-pluggable Phoenix connector
  • 802.3af compliant PoE powered for single-cable connectivity
  • +48V phantom power per channel, software selectable
  • Compatible with Dante Domain Managerโ„ข
  • Compact form factor suitable for standard dual-gang US junction boxes

Specifications:

  • Audio Inputs: 2x XLR (balanced and RF filtered), 2x RCA (stereo unbalanced), 1x 3.5 mm TRS (stereo unbalanced)
  • Input Gain: -18 dB, -3 dB, +25 dB, +40 dB (software selectable for XLR inputs)
  • Phantom Power: +48V, software selectable (XLR inputs only)
  • Audio Outputs: 2x balanced line level on 6-pin de-pluggable Phoenix connector, 1x unbalanced line level on 3.5 mm TRS
  • Maximum Output Level: +20 dBu (balanced outputs), +12 dBu (unbalanced output)
  • Dante Network: Standard Ethernet, single RJ-45 connector, 100 Mbps, supports 44.1 kHz and 48 kHz sample rates
  • Power: 802.3af PoE powered
  • Dimensions (H x W x D): 4.2 x 3.54 x 2 inches (106.68 x 89.91 x 50.8 mm)
  • Weight: 0.6 lbs (0.27 kg)
