Shure GLXD14/85-Z2 Wireless Instrument System with WL185 Lavalier Mic

Features of the Shure GLXD14/85-Z2 Wireless Instrument System with WL185 Lavalier Mic:

• For Presenters and Performers
• WL185 Cardioid Lavalier Mic
• Lightweight Bodypack Transmitter
• True Diversity Tabletop Receiver
• 16-Hour SB902 Rechargeable Battery
• Expandable to 8 Mic Channels/200′ Range

Specifications:

System
Wireless Technology Digital 2.4 GHz
Included Transmitters 1 x Bodypack
Diversity True Digital Diversity
Max Operating Range 200′ / 61 m (Line of Sight)
Max Transmitters per Band 8
Latency 4 to 7.3 ms
Dynamic Range 120 dBA
Modulation Proprietary
Receiver
Receiver Type Tabletop
Antenna 2 x 1/2 Wave Sleeve Dipole, Fixed (Front-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TRS Female Balanced/Unbalanced Output
Gain Range -20 to +40 dB (1 dB Steps)
Audio Output Level XLR Output:
0 dBV
1/4″ Output:
+8.5 dBV
Phantom Power Protection On 1/4″, XLR Outputs
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
USB/Lightning Connectivity 1 x Micro-USB (Host Connection)
Impedance XLR Output:
100 Ohms (Balanced)
1/4″ Output:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
RF Output Power 10 mW (EIRP)
Spurious Rejection: >35 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 14 to 18 VDC at 550 mA, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing Plastic
Dimensions 7.2 x 1.6 x 4.6″ / 183 x 40 x 117 mm
Weight 10.1 oz / 286 g

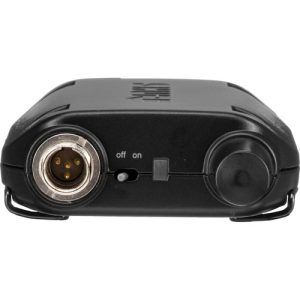

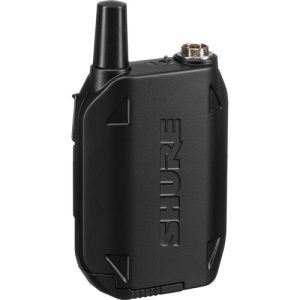

Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW (EIRP)
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Muting Off/On Switch
Audio Input Level -8.4 dBV / 7.5 V p-p
Gain Range -20 to +40 dB (1 dB Steps)
Sync Method Proprietary
Antenna 1 x Internal, Fixed (Beltpack)
Power Requirements Battery
Battery Type 1 x Shure SB902 (Included, Replaceable)
Battery Charging Time .25 to 3 Hours
Approx. Battery Life 16 Hours (Lithium Rechargeable)
USB/Lightning Connectivity 1 x Micro-USB (Charging)
Display & Indicators 1 x LED (Battery Status, Sync)
Housing Metal
Dimensions 2.5 x 3.6 x 0.9″ / 64.5 x 90.4 x 22.9 mm (without Antennas)
Weight 4.7 oz / 132 g (without Batteries)
Microphone
Microphone Type Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Cardioid
Frequency Range 50 Hz to 17 kHz
Maximum SPL 130.5 dB SPL
Impedance 1.8 Kilohms
Sensitivity -45.5 dBV/Pa
Dynamic Range 102.5 dB
Output Connectors 1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length 3.94′ / 1.2 m
Operating Voltage 1.5 to 10 V
