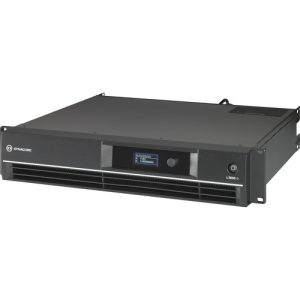

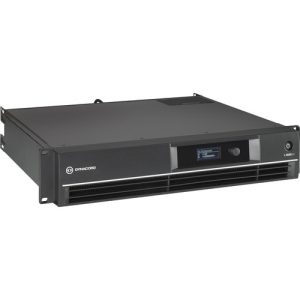

Dynacord L3600FD 2x1800W DSP Power Amplifier

Features of the DSP Power Amplifier:

• Rock solid amplifier technology engineered in Germany
• Extremely powerful, proven audio performance
• Engineered for constant stability at 2 ohms
• Sophisticated protection circuitry always protects the amplifiers and connected loudspeakers
• High-performance bulletproof voltage handling
• On-board DSP includes multi-band PEQs, crossovers, limiters and delay per channel
• Intuitive, powerful control software makes configuration and real time control easy — up to 16 amp channels can be controlled and monitored simultaneously
• User profiles can be setup to ensure security of the system
• Advanced FIR drive to optimize original factory loudspeaker settings yielding a level of unparalleled performance
• True channel grouping control with extra DSP capabilities like PEQ, GEQ and delay for each group

Specifications:

• Load Impedance: 2Ω 2.7Ω 4Ω 8Ω
• Maximum Output Power, SIngle Channel: 2Ω: 3200W; 2.7Ω: 2700W; 4Ω: 1800W; 8Ω: 950W
• Maximum Output Power, Dual Channel: 2Ω: 3000W; 2.7Ω: 2500W; 4Ω: 1700W; 8Ω: 900W
• Maximum Output Power, Bridged: 4Ω: 6000W; 8Ω: 3400W
• Maximum RMS Voltage Swing, THD = 1%, 1kHz: 90.6V
• Voltage Gain ref.1kHz: 32.0dB
• IMD-SMPTE, 60 Hz, 7 kHz: <0.1%
• DIM 30: <0.05% (3.15 kHz, 15 kHz)
• Maximum Input Level: +21dBu
• Crosstalk: < -80dB (ref. 1 kHz, at 100 W/4 Ω)
• Frequency Response: 10 Hz to 21 kHz (±1 dB)
• Input Impedance, active balanced: 20kΩ
• Signal-to-Noise Ratio (A-weighted): >109dB
• Output Noise , A-weighted: <-68dBu
• Output Stage Topology Class: H
• Power Requirement: 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
• Power Consumption: 850 W (⅛ Maximum Output Power @4Ω)
• Protection: Audio limiters, high temperature, DC, HF; Back-EMF, Peak current limiters, Inrush current; limiters, Turn on delay
• Cooling: Front-to-rear, 3-stage-fans
• Safety Class: I
• Available Color: Black
• Height: 88mm (3.46″)
• Width: 483mm (19.02″)
• Depth: 462.4mm (18.2″)
• Weight Net: 18.2kg (40.12 lbs)
• Signal Processing: FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance
• Mains Fuse: 120 V/100 V: T20AH
• Operating Temperature Range: +5°C to +40°C (40°F to +105°F)
• Total Harmonic Distortion: <0.05% (1200 W/4 Ω MBW = 80 kHz, 1 kHz)
