10ft Medium Duty Lighting Crank Stand
ProX XT-LS01C 10ft Medium Duty Lighting Crank Stand

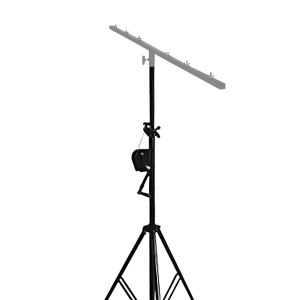

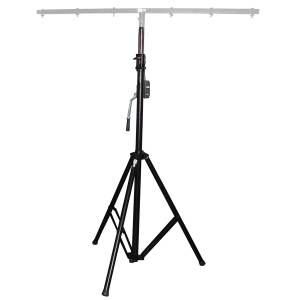

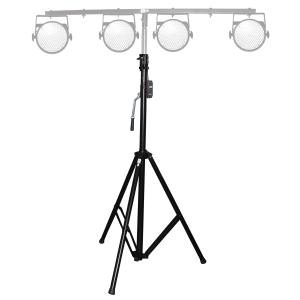

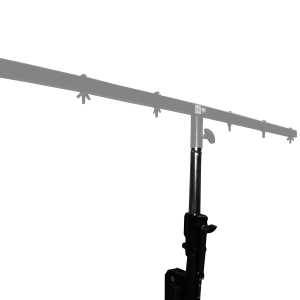

The ProX T-LS01C Medium duty crank stand used in conjunction with T-adapters and Trussing (Sold Separately) Allows you to mount and raise your lights to a maximum of 10Ft.
MAX VERT LOAD: 180 Lbs.
To avoid problems a competent person should inspect all rigging hardware, stands and equipment before each use and periodically do a major inspection for signs of wear, abuse, and general adequacy, as well as perform any manufacturer recommended preventive maintenance on schedule. Observe all warnings and usage instructions in the full manual. Use at your own risk.
- Ensure that the stand is positioned on hard stable surface, in suitable location, on firm ground and clear of overhead obstacles.
- Stabilize legs before lifting the tower or any load.
- When outdoors, secure the tower with braces or cables, in case of wind.
- Check the cable, it should not show damaged or flattened areas nor broken strands.

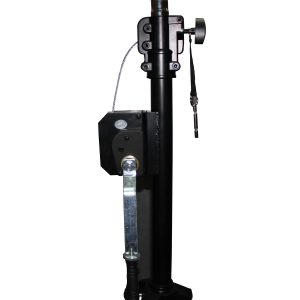

Using the Winch:
- For Lifting the tower, turn the winch handle clockwise.
- For lowering the tower, turn the winch handle counter-clockwise.
- Loading on truss and stands should comply with rated weights.
- Lock all the safety mechanisms (safety pins, knobs)
- Loads must be centered & balanced on each lifting unit.
- Safety chains must be installed on each item attached to unit.
- Leave a safety perimeter with a radius 5ft greater than the maximum height of the stands during lifting and lowering of loads.
- During transport, close all the sections and lock the lifting carriage.
- Do not attempt to move the stand when loaded or in extended position.
- Servicing and repairs must be made by qualified persons.
- Cable, pulleys and telescopic masts must be inspected before each use. Any damaged cable must be replaced immediately.
- Annual inspection by an authorized technician is suggested.
|Dimensions||69 × 9 × 14 in|
ProX Live Performance Gear
ProX Live Performance Gear makes products that are designed for professionals, by professionals. Our motto is simple; "Quality, without compromise". We believe the highest quality of components met with cutting edge design allows us to achieve our goals at a competitive price point. In 1984 ProX Started by manufacturing flight cases for broadcasting production and touring companies. Now specializing in manufacturing specific DJ controller cases for brands like Pioneer, Yamaha and DiGiCo as well as products like lighting cases, stands, cables, and bags.
All cases use CNC technology, during the manufacturing process, to assure that cases are consistently built with strict specifications and tolerances that are required for the high-quality standards that ProX cases have been known for. ProX Listens to customer feedback and consistently create outstanding solutions for all your needs. The Flip-Ready cases are manufactured in Poland and are handcrafted for quality control and individually tesfad for smooth operation. The Flip-Ready design allows for easy, one person, instead of four, movement from the transport position to operational position with virtually no effort.
