ADJ AV3X – 3.9mm Pixel Pitch LED Video Panel

(1 customer review)

GTR Direct Canada's choice for DJ gear

$1,799.00

UPC: 818651027761 SKU: AV3144 Category: Tags:
ADJ lighting solutions Canada

The AV3X is a high resolution, flexible video panel from ADJ. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED.

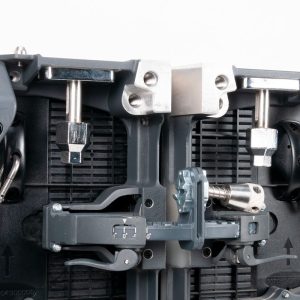

The panel can curve in convex or concave up to 15°.

The brightness is 1000NITS.

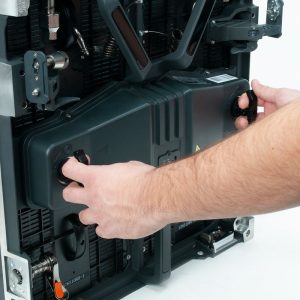

There are 2 LED modules per panel. This allows for easy serviceability.

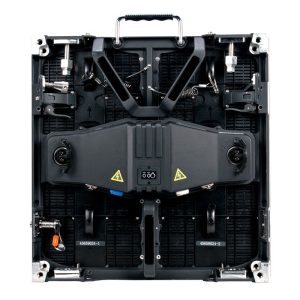

The AV3X connections include powerCon In/Out and Ethercon In/Out.

This panel also features a Novastar receiving card.



ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

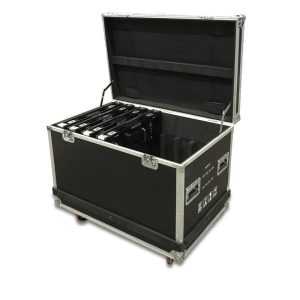

Up to 8 AV3X video panels fit inside the AV3FC flight case.

Specifications

SPECIFICATIONS:

• Pixel Pitch: 3.91mm (0.25”)

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 128×128; 65536 per square meter

• Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm

• Module Quantity: 2

• Weight: 20 lbs. / 9kg.



MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm



OPTICAL RATINGS:

• Brightness: 1000 NITS

• View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)

• Gray Scale / Display Color: 14-bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit



POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 170W/per panel

• Ave. Power Consumption: 70W/per panel

• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out



CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/16

• Refresh Rate: 1920Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network



ENVIRONMENTAL:

• Operating Temp / Humidity:  Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

• Operating Life / MTBF: 50,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

• Listings:  ETL, CE, FCC Class A
