Allen & Heath DT164W 16×4 Dante Wall Box

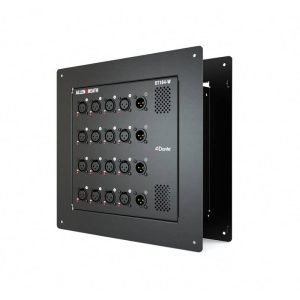

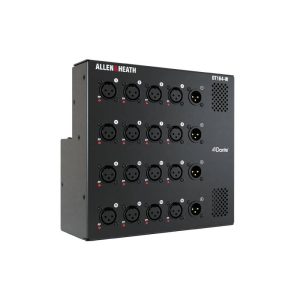

The DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation. The reversible mounting frame allows for in-wall or on-wall mounting.
This Item No Longer Available
UPC: 6938122249172
SKU: DLIVE-DT164W
Category: Stage Boxes
Tags: 4 XLR Line Outs Allen & Heath Dante Wall Box Locking Ethercon Switched mode Wall Mount XLR
Features of the Allen & Heath DT164W 16×4 Dante Wall Box:
- Dante audio expander, 96kHz / 48kHz
- Wall mount or dip trap installation
- 16 mic preamps on XLR with Phantom Power status LEDs
- 4 XLR Line Outs
- Primary and Secondary Dante ports with locking EtherCon
- Redundant or Switched mode
- Direct preamp control from dLive, Avantis and SQ
- 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
- DC power can be used as redundant power supply
- Can fit in a standard NEMA box (custom brackets required)
- Compatible with ACE Backstage 174SLBK stage pocket system
- AES67 compatible
- Dante Domain Manager ready
Brand
Allen & Heath
