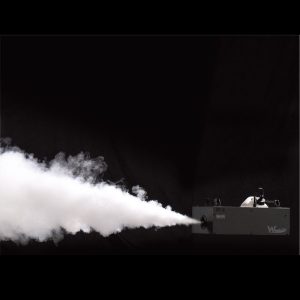

Antari W-510 Water Based Wireless Fog Machine with Wireless Remote

Features of the Antari W-510 Wireless Fog Machine with Wireless Remote:

‧Intelligent Wireless Control System

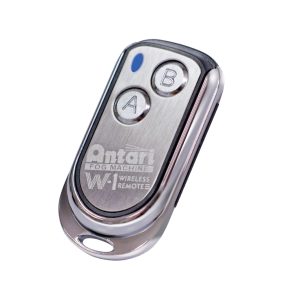

Each machine comes with a set of wireless receiver and transmitter as a standard controller. The working distance of wireless control is 50 meters in open area.

‧Opto-electronic Fluid Sensor
When the fluid recipient runs dry, the fluid sensor stops pumping automatically to protect the pump from burning.

‧More Efficient New Heat Exchanger Design
It can generate drier fog with smaller particles. This leads to a fairly low fog fluid consumption. Compare to the equivalent power consumption heat exchangers, the same quantity of fog fluid in W series can produce 20% more fog than others.

‧New Advanced PCB (Printed Circuit Board)
Design The new system can control temperature precisely and rule out the influence from outside environments as much as possible to make W series fog machines be able to work stably between – 20 and + 60 degree Celsius.

Specifications:

Input voltage US model : AC 100-120V, 50/60HZ 8.5A
EU model : AC 220-240V, 50/60Hz 4.5A
Rated power 120V 1000W
240V 1070 W
Warm-up time 13 minutes (approx.)
Fluid consumption 90 ml/min
Fluid tank capacity 2.8 Liters (0.74 gallon)
Compatible fluid Antari FLG Heavy Fog Fluid
Antari FLR Light Fog Fluid
Operating time 30 mins at max. output
Ambient temp.range 0°C – 40°C (32°F – 104°F)
Control DMX 512, Wireless
DMX channels 1 channel
Connection
IEC (Power)
XLR 3-pin and 5-pin (DMX)
Optional Accessories W-510-HB Hanging Bracket
Dimension L 487 W 250 H 223 mm
(L 19.17 W 9.84 H 8.78 inch)
Weight 11.4 kg (25.13 lbs)
