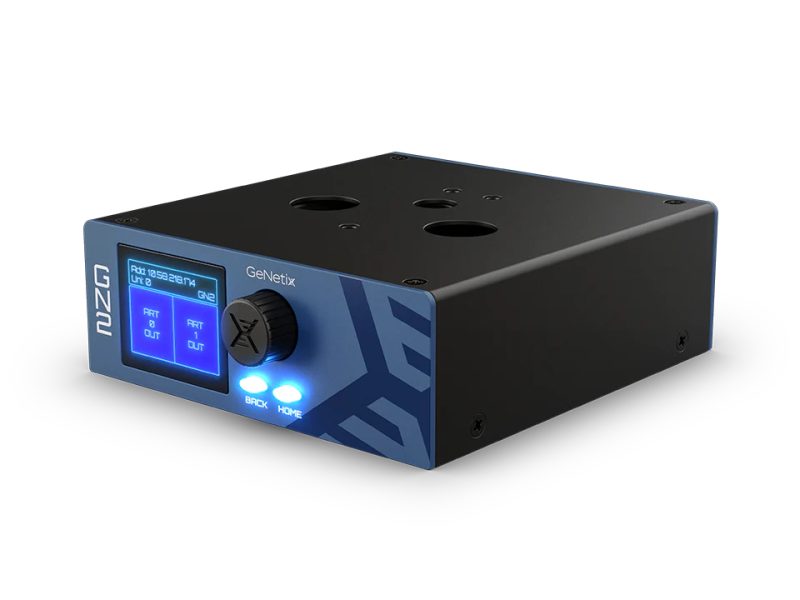

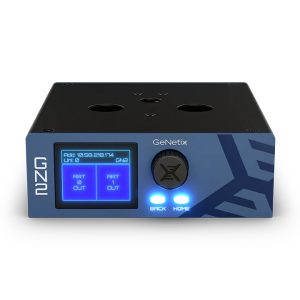

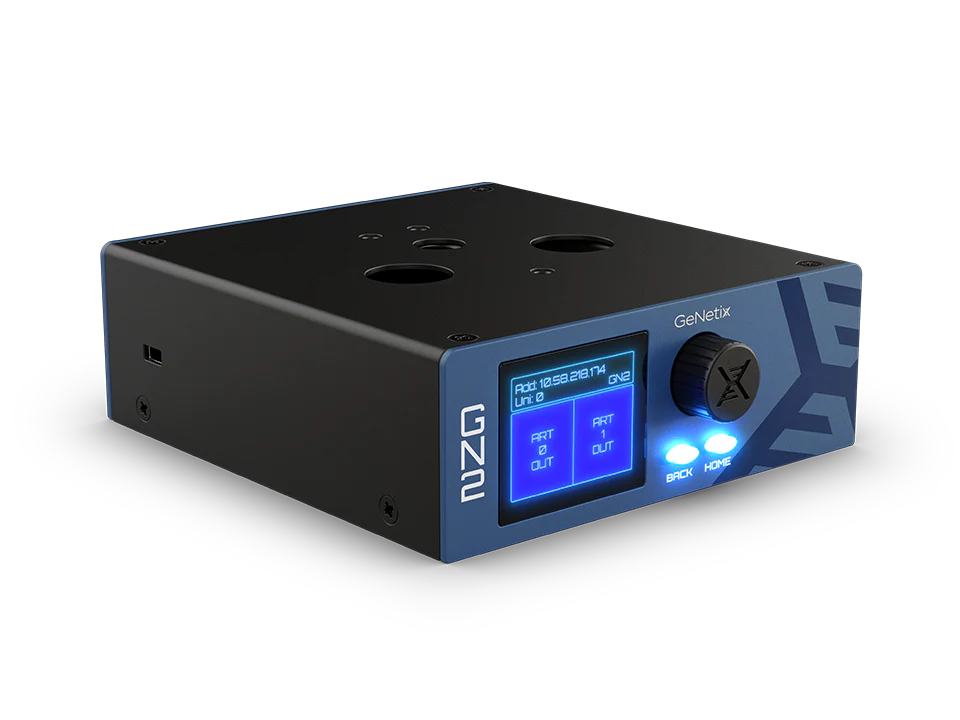

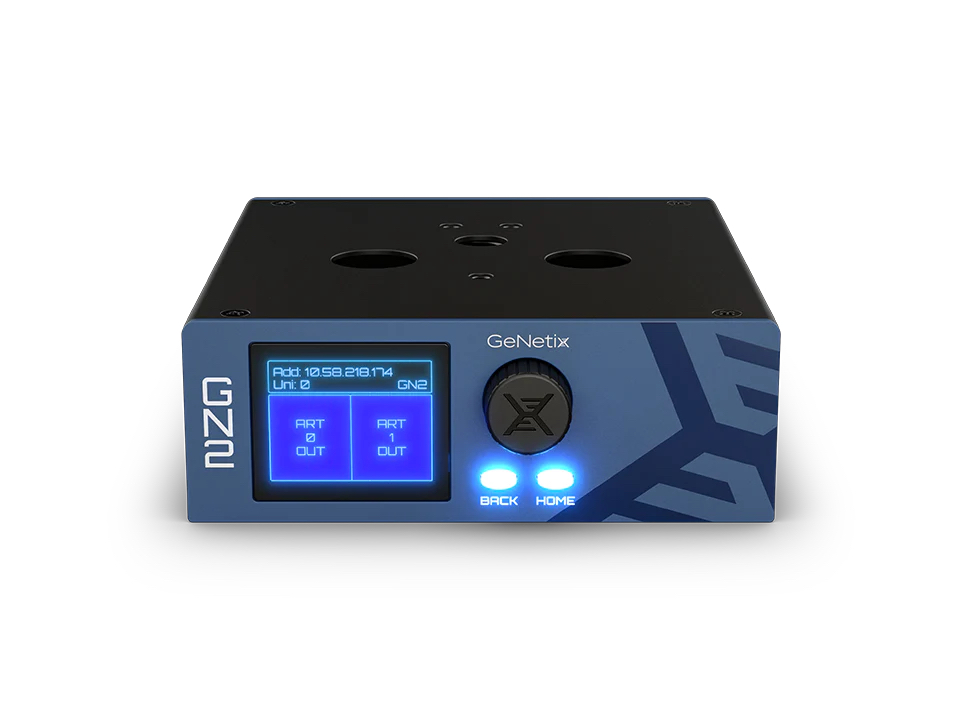

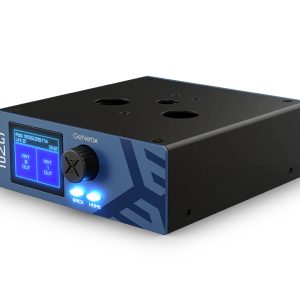

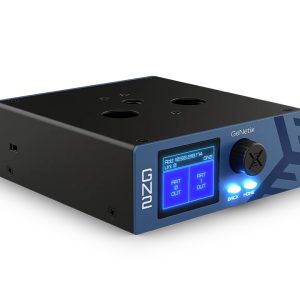

ChamSys GeNetix GN2 2-Port Ethernet-DMX Node

Features of the ChamSys GeNetix GN2 Ethernet-DMX Node:

• 2 RDM DMX Ports supporting Input and Output
• Supports Art-Net & sACN
• Webserver for remote configuration
• In-built display and encoder for local configuration
• Can be USB or PoE powered
• Unlocks MagicQ PC Systems into Reduced Mode via either USB or Network

Specifications:

Hardware

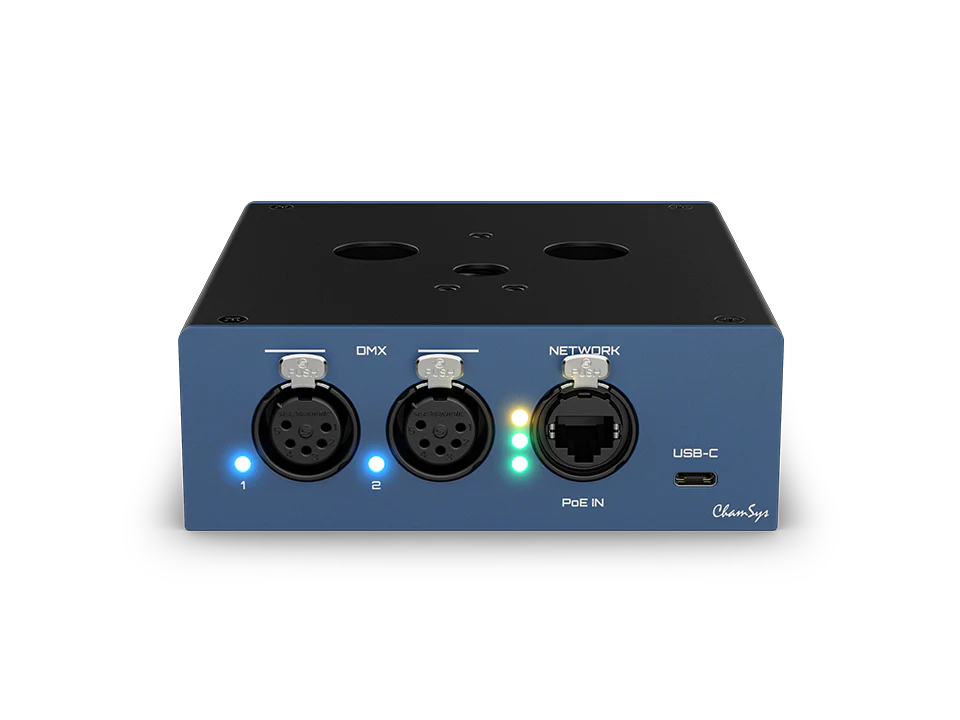

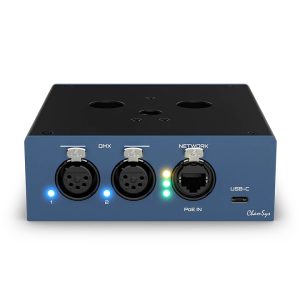

• RDM Direct DMX Ports: 2
• Network Ports: 1
• PoE Input: Yes (Port 1)
• USB Ports: 1 USB-C
• Kensington Security Lock Fixing: Yes
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software

• Art-Net/sACN: Yes
• ChamNet Support: Yes
• Configurable DMX Timings: Yes
• Web Server: Yes
• DMX Redundancy Support: Yes
• User Scene Store: Yes

Weights and Dimensions

• • (WxDxH): 1.73 x 4.92 x 5.23 inch (44 x 125 x 133 mm)
  • Weight: 1.87 lb (0.85 kg)

Included Accessories

• 1x Neutrik powerCON TRUE1 Power Cable
• 1x DIN Rail Mount Clip
• 1x USB A-C Cable
