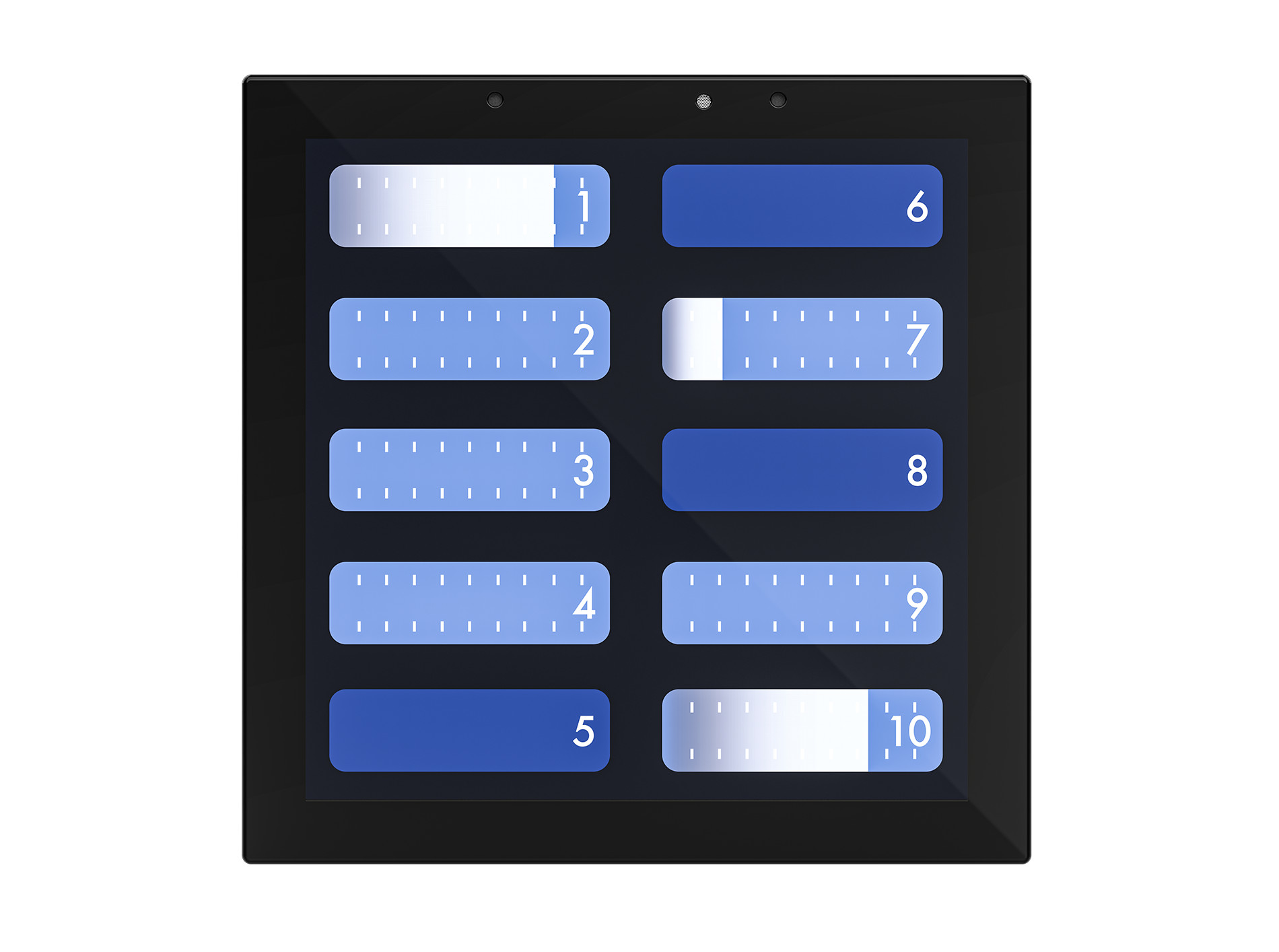

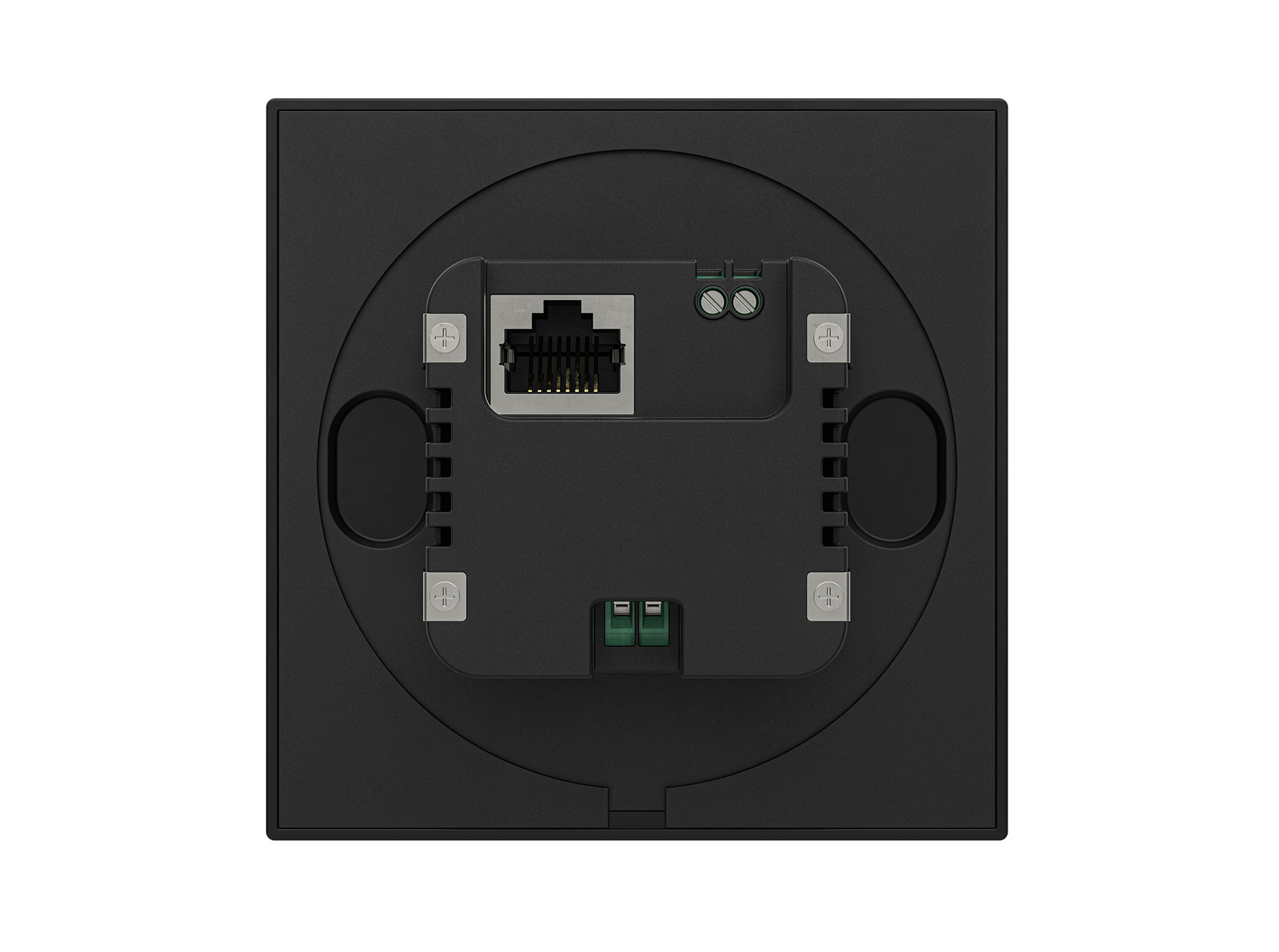

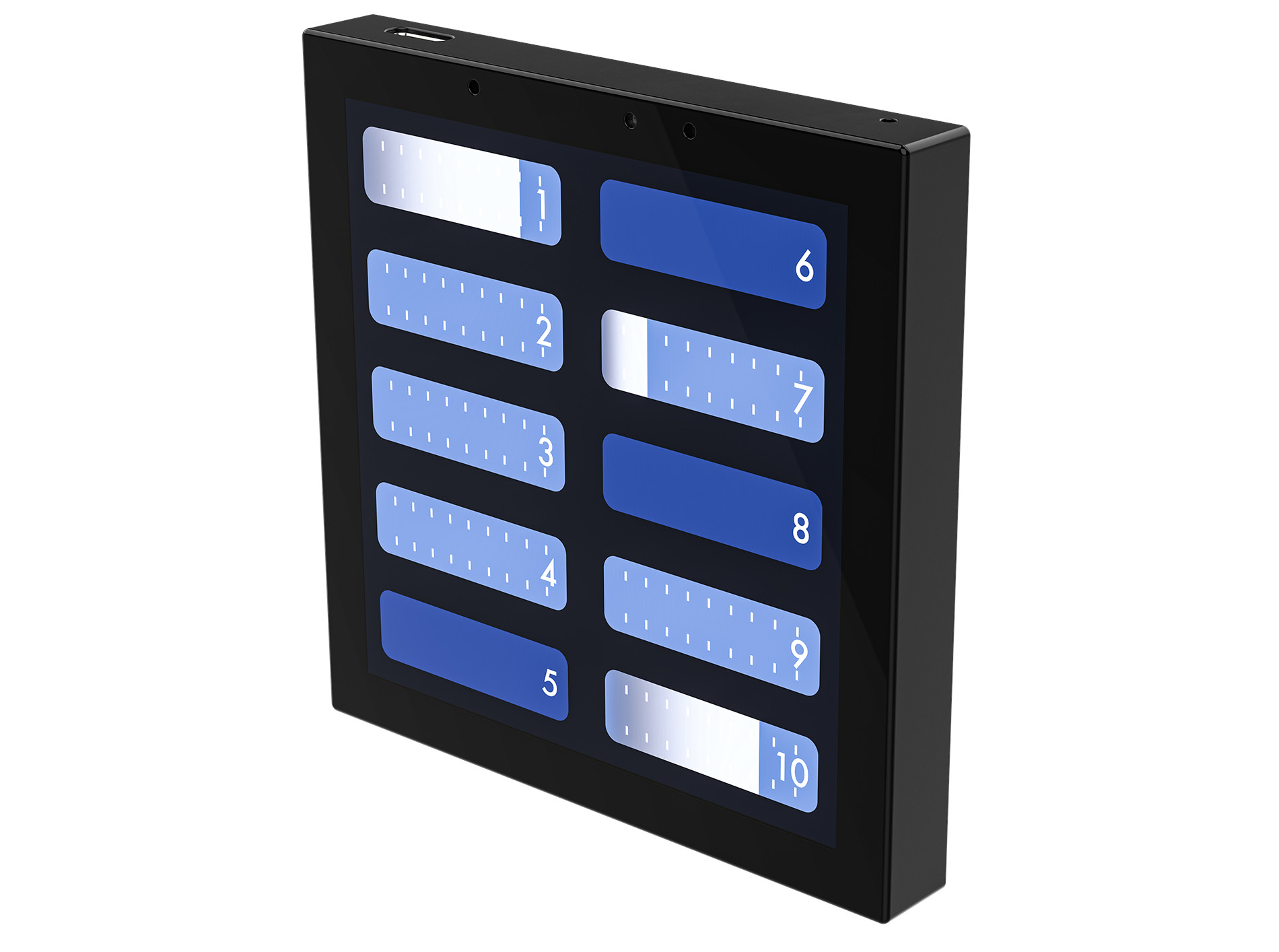

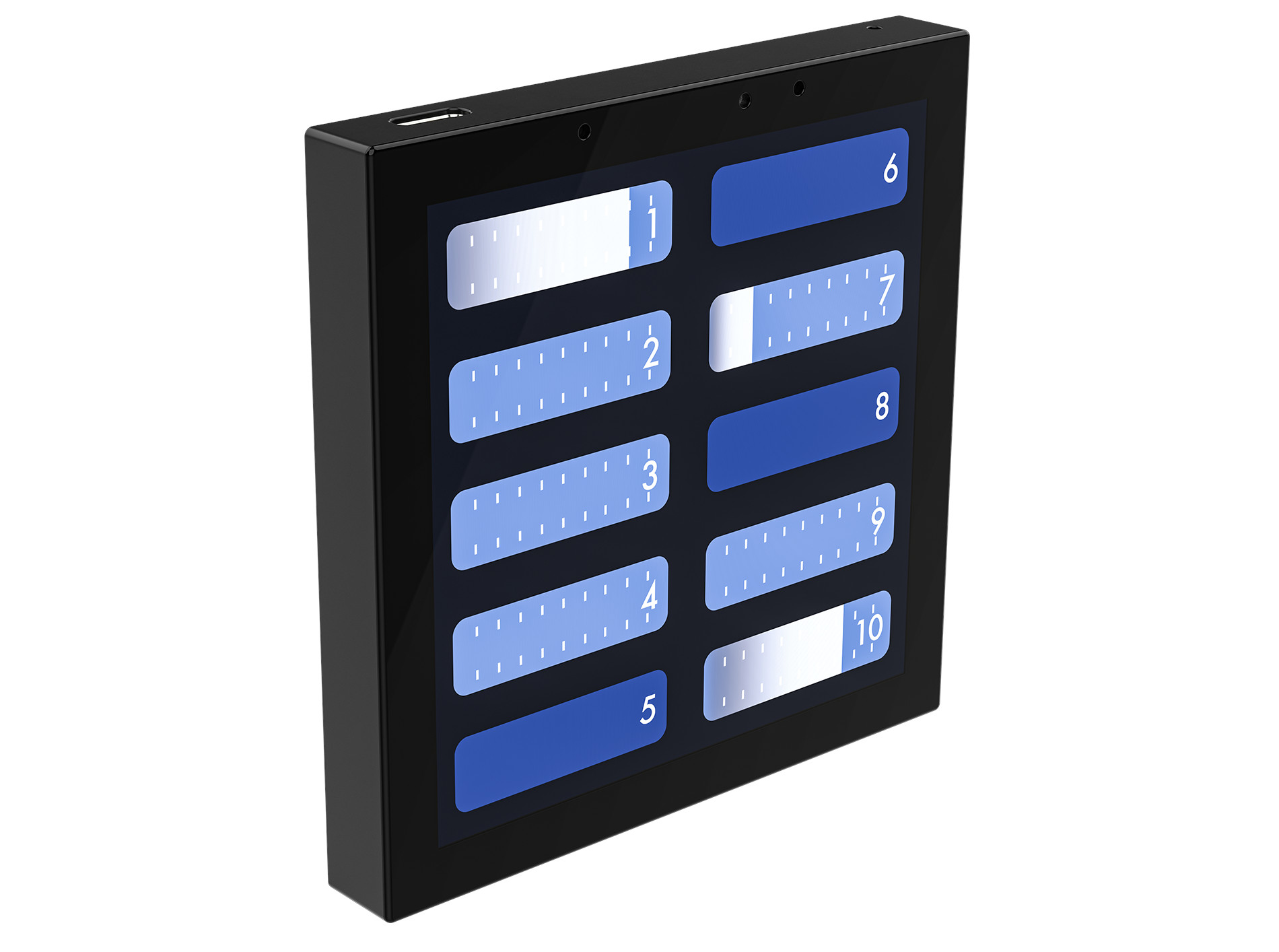

ChamSys GeNetix TouchScene MINI 4-inch Controller

Features of the ChamSys GeNetix TouchScene MINI 4-inch Controller:

• 4″ Touch Screen
• Connects to either MagicQ Systems, QuickQ Consoles or GeNetix Nodes
• PoE Powered
• Features Selectable In-built Layouts
• Customisable Layouts when connected to either MagicQ or QuickQ consoles
• Supports Pin Locking when connected to MagicQ or QuickQ consoles
• Supports Custom Screensavers

Specifications:

Hardware

• Screen Size: 4″
• 48v PoE Powered: Yes
• Unlocks MagicQ PC Systems: No*
• Fits EU / UK Single Gang Backbox: Yes
• Fits US Dual Gang Backbox: Yes (with supplied adapter plate)
• * Note when used with MagicQ PC Systems, MagicQ must be fully unlocked in order for the TouchScene to work with the PC System.

Software

• Connects to MagicQ Consoles: Yes
• Connects to QuickQ Consoles: Yes
• Connects to GeNetix Nodes: Yes
• Connects to MagicQ PC Systems: Yes – Required System to be Full Unlocked
• Number of Zones when used with MagicQ Systems: 50
• Number of Zones when used with QuickQ Consoles: 10
• PIN Locking: Yes – MagicQ/QuickQ Only
• Customisable Screen Saver Images: Yes
• Inbuilt UI Layouts: Yes
• Customisable UI Layout: Yes – MagicQ / QuickQ Only

Weights and Dimensions

• (WxDxH): 3.34 x 0.43 x 3.34 inch (85x 11 x 85mm)
• Including Rear Connector: 3.34 x 1.38 x 3.34 inch (85x 35 x 85mm)
• Weight: 0.22 lb (0.1kg)
