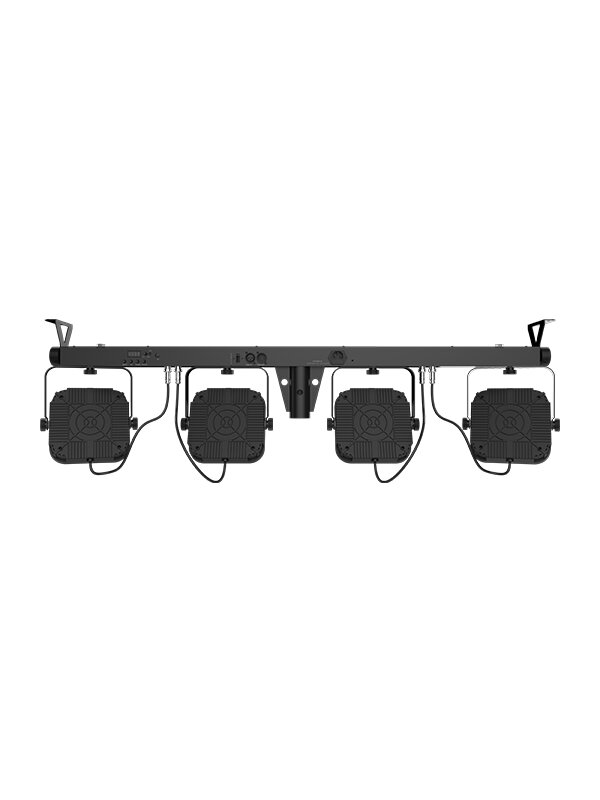

Chauvet DJ 4BAR ILS LED Wash Light System with ILS

Features of the 4BAR ILS LED Wash Light System with ILS:

• Complete wash lighting solution designed for mobile entertainers
• ILS compatibility for use in the ILS ecosystem
• Achieve total room or stage coverage with 4 individually adjustable heads
• D-Fi USB compatibility for wireless master/slave or DMX control
• Easily set-up and tear down in minutes using the included tripod, wireless footswitch and carry bags
• Increase mounting options by safely mounting to truss using the built-in bolts
• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
• Sound-activated programs dance to the beat of the music
• Easily control static colors and automated programs with the optional IRC-6 remote
• Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

Specifications

• DMX Channels – 3, 5 or 15
• DMX Connectors – 3-pin XLR
• Light Source – 432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy
• Strobe Rate – 0 to 19.9 Hz
• Beam Angle – 17°
• Field Angle – 24°
• Illuminance – 786 lux @ 2 m (per pod)
• Input Voltage – 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current
• 29 W, 0.4 A @ 120 V, 60 Hz
• 27 W, 0.2 A @ 230 V, 50 Hz
• Weight – 11 lb (5.0 kg)
• Size – 43.3 x 2 x 10.5 in (1,100 x 50 x 267 mm)
• Approvals – CE, RoHS, UKCA
• Stand Height – 7 ft 4 in (2.2 m)
• Fits Tripod Sizes – 1.37 in (35 mm)
• Weight (Controller) – 1.2 lb (0.6 kg)
• Size (Controller) – 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
• Optional Controllers – IRC-6, D-Fi USB

What’s Included

• 4Bar ILS
• Power cord
• Carrying bag
• Tripod
• Tripod Carry bag
• Wireless Footswitch
• Quick Reference Guide
