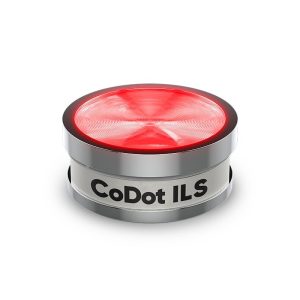

Party lighting fits in the palm of your hand with CoDot ILS. This puck-sized LED illuminator is the perfect solution for small spaces where conventional fixtures can’t fit. Each CoDot ILS has 1 quad-color (RGBW) LED to suit a range of applications.
$529.99
UPC: 781462227067UPC: 781462227067
Tags: Chauvet DJDMX ChannelsLED IlluminatorMagnetic baseCategories: LED Bars, PAR Can Lights | LED Bars, Static LightsSKU: CODOT-ILS
Brand: Chauvet DJFeatures of the Chauvet DJ CoDot ILS LED Illuminator:
- Coin-sized LED illuminator designed for small applications where conventional fixtures won`t fit
- Includes two lens options to meet different application criteria
- Magnetic base easily mounts to metal surfaces
- Threaded insert is compatible with camera tripods and accessories
- ILS compatibility for use in the ILS ecosystem
- Built-in DFI transceiver communicates DMX or ILS signals wirelessly
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- Easy navigation and access all functions directly from the LED display
- Power linking multiple units from the USB type-C in and out
Specifications
- DMX Channels: 4 or 6
- Max Unobstructed Distance: 600 ft (183 m)
- Light Source: 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Operating Frequency: 2.4 GHz
- Power Linking: 4 units @ 120 V; 4 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Beam Angle (installed lens): 19°
- Beam Angle (included lens): 14°
- Illuminance (installed lens): 256 lux @ 2 m
- Illuminance (included Lens): 442 lux @ 2 m
- Operating Frequency: 2.4 GHz
- Power and Current
- Optional Controllers: ILS Command, RFC, RFC-XL
- Weight: 0.2 lb (.1 kg)
- Size: 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)
- Approvals: CE, ROHS, UKCA, FCC
7 W, 0.1 A @ 120 V, 60 Hz
7 W, 0.1 A @ 230 V, 50 Hz
What’s Included
- 4x CoDot ILS
- 8x Lenses
- 3x Short USB cables (0.5m)
- 3x Long USB cables (2m)
- 1x Carry case
- 1x External power supply
- Quick Reference Guide
