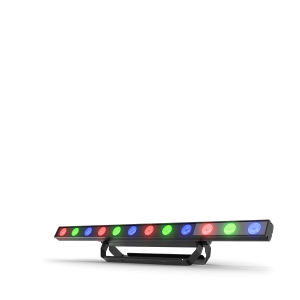

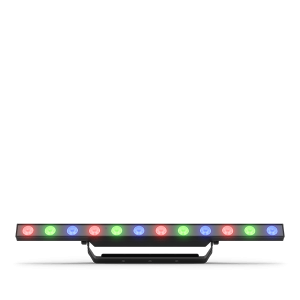

Chauvet DJ COLORband Pix ILS LED strip light

UPC: 781462223083UPC: 781462223083
chauvet dj logo

COLORband Pix ILS is a feature-packed full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer. Its built-in RF receiver offers wireless control using the RFC or RFC-XL optional remotes and compatibility with the cutting edge.

Features of the Chauvet DJ COLORband Pix ILS:

Full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless Master/Slave or DMX control
Create amazing animations and video effects with individual LED control
Convenient access to multiple pre-built programs with or without DMX
Easily generate complex shows with ShowXpress Pixels
Achieve flicker-free video operation with high-frequency LED dimming
Ideal for quiet applications due to silent operation and no moving parts
Easily transports in the optional CHS-60 VIP Gear Bag


DMX Channels: 3, 4, 6, 7, 8, 9, 12, 18, 36 or 41
DMX Connectors: 3- and 5-pin XLR
Light Source: 12 LEDs (tri-color RGB) 3 W (1,000 mA), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: 14°
Field Angle: 27°
(2m): 4,142 lux @ 2 m
(5m): 663 lux @ 5 m
Lumens: 1402
Power Linking: 19 units @ 120 V; 35 units @ 230 V
Power and Current:
49 W, 0.7 A @ 120 V, 60 Hz
48 W, 0.4 A @ 230 V, 50 Hz
Weight: 7 lb (3.2 kg)
Size: 38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
Approvals: CE, MET, UKCA, RoHS
Cable Length: 5 ft (1.5 m)
Bracket Mounting Hole: 13 mm
Optional Controllers: RFC, RFC-XL, DFI-USB


Chauvet DJ

CHAUVET DJ is a premier line of entertainment lighting, controllers and accessories for the mobile performer, DJs, clubs, corporate events and more. Offering the most value in the industry. Chauvet is a leading developer of luminaires, trussing, controllers, atmospherics and related equipment marketed globally under four main brands: CHAUVET DJ, CHAUVET Professional, Iluminarc, and ChamSys. Each Chauvet brand is well thought out to serve different customer needs but they all share the company’s focus on positively impacting every market segment with a competitive advantage in terms of value, innovation or performance.

Founded in 1990 by Albert and Berenice Chauvet, the company is widely recognized for its leadership in bringing successful concepts to market, including pioneering the development of affordable LED color mixing fixtures. The Chauvet mission is to elevate the world of lighting with customer-driven products at unparalleled value. We achieve this by following our VIP standards (value, innovation, performance) which motivate us to capture every technological and competitive edge to benefit our customers who are always our first priority.
