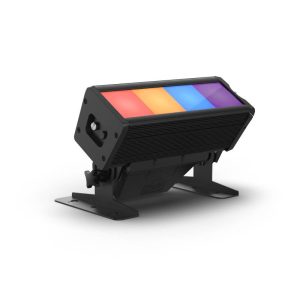

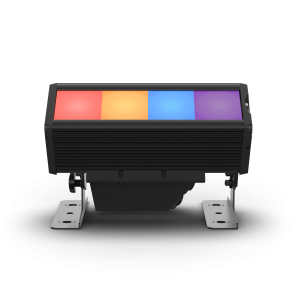

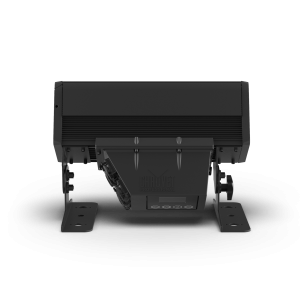

Chauvet Pro COLORado Solo Batten 4 IP65 Wash

Features of the Chauvet Pro COLORado Solo Batten 4 IP65 Wash:

• RGBAW 4-cell LED Batten with seamless end-to-end color for wash or pixel mapping
• Completely homogenized color with no separation or dimmed lens corners
• All-environment operation with IP rated power, DMX, and Ethernet connections
• Color temperature presets, from 3200 K to 10000 K
• Selectable, smooth dimming curves for programming versatility
• Built for touring, live event, television, and theatrical productions
• Large, easy-to-navigate display with password protection

Specifications:

Optical

• Light Source: 48 LEDs (8 red, 8 green, 8 blue, 8 amber, 16 white) 3 W, (612 mA) 50,000 hours life expectancy
• Color Temperature (range): 1800 to 8000 K
• CRI (3200 K): 77.2
• Installed Optics: 18°
• Beam Angle (Horizontal): 18°
• Beam Angle (Horizontal w/ Filter): 35°
• Beam Angle (Vertical): 17°
• Beam Angle (Vertical w/ Filter): 16°
• Field Angle (Horizontal): 34°
• Field Angle (Horizontal w / Filter): 66°
• Field Angle (Vertical): 30°
• Field Angle (Vertical w / Filter): 32°
• Lumens: 3,730
• Illuminance (total): 1,270 lux @ 5 m
• Illuminance w/ Filter (total): 432 lux @ 5 m
• Selectable PWM: 600, 1,200, 2,000, 4,000, 6,000, 25,000

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Construction / Physical

• Dimensions: 14.65 x 9.06 x 9.96 in (372 x 230 x 253 mm)
• Dimensions (shipping size): 17.32 x 8.85 x 13.58 in (440 x 225 x 345 mm)
• Weight:17.2 lb (7.8 kg)
• Weight (shipping weight): 20.50 lb (9.3 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 13.5 x 3.81 in (342.9 x 97 mm)

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, DMX, Art-Net to DMX, sACN, RDM
• DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 13, 16
• DMX Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
• Art-Net Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 13, 16
• Art-Net Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
• Modes/Personalities: 19 personalities

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 14 units @ 120 V; 24 units @ 208 V; 26 units @ 230 V
• Power and Current: 113 W, 0.960 A @ 120 V, 60 Hz [4.2 A inrush]
• Power and Current: 110 W, 0.566 A @ 208 V, 60 Hz [3.60 A inrush]
• Power and Current: 111 W, 0.516 A @ 230 V, 50 Hz [2.6 A inrush]
• Power and Current (resting): 11 W, 0.085 A @ 120 V, 60 Hz
• Power and Current (resting): 25 W, 0.117 A @ 208 V, 60 Hz
• Power and Current (resting): 27 W, 0.115 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

• COLORADO SOLO BATTEN 4, with glare shield
• Seetronic Powerkon IP65 power cord
• Wall Wash Filter
• Omega Brackets
• Quick Reference Guide
