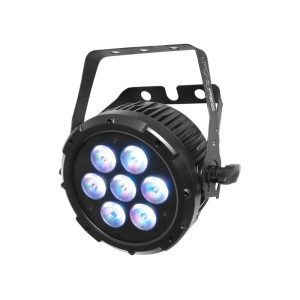

Chauvet Pro COLORdash Par-Quad 7
Powered by seven quad-colored RGBA LEDs, the ultra-compact COLORdashâ„¢ Par Quad-7 fits in places where other fixtures cannot. The seven LEDs project deeply saturated output and any variation of white, without multi-colored shadows. A split-yoke bracket eliminates the need for floor stands.
Features of the Chauvet Pro COLORdash Par-Quad 7:
€¢ DMX channels: 4, 6, 10-channel
€¢ Operating modes
4-channel: RGBA
6-channel: Dimmer, RGBA, strobe
10-channel: Dimmer, RGBA, strobe, macro, auto, auto speed, dim mode
€¢ Silent flicker free operation
€¢ Lightweight, easy to install
€¢ 16 bit dimming with selectable dimming curves
€¢ All metal construction for added durability
Specifications:

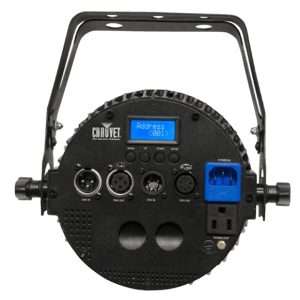

€¢ DMX connectors: 3-pin & 5-pin
€¢ Source: 7 (7 W) quad-color LEDs, 50,000 hours
€¢ Light source: red (447mA x 2.10vdc = 0.94W)
Green (425mA x 3.25vdc = 1.38W)
Blue (459mA x 3.08vdc = 1.41W)
Amber (482mA x 2.40vdc = 1.16W)
€¢ Beam angle: 18°
€¢ Field angle: 32.5°
€¢ Illuminance: 434 lux @ 5 m
€¢ Power linking: 22 units @ 120 V / 38 units @ 208 V/ 38 units @ 230 V
€¢ Input voltage: auto-ranging 100-240 VAC 50/60 Hz
€¢ Power and current: 73 W, 0.60 A @ 120 V 60 Hz
€¢ Power and current: 73 W, 0.36 A @ 208 V 50 Hz
€¢ Power and current: 74 W, 0.35 A @ 230 V 50 Hz
€¢ Weight: 5.4 lbs (2.5 kg)
€¢ Size: 9.9 x 9 x 3.9 in (252 x 228 x 100 mm)
€¢ Approvals: CE
