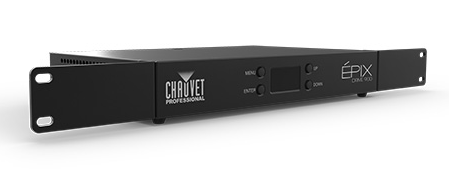

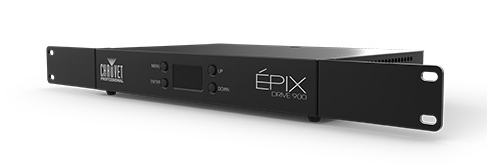

Chauvet Pro EPIX Drive 900 LED Controller for Tour Systems

Description:

It supports either 18 ÉPIX Strip Tours or 6 ÉPIX Bar Tours, or any combination of the two, with a total capacity of 900 LEDs ÉPIX Drive 900 supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the ÉPIX lights.

At a Glance:

• The processing and power center of the ÉPIX Tour system will drive any combination of ÉPIX Tour products, up to 900 LEDs
• Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets

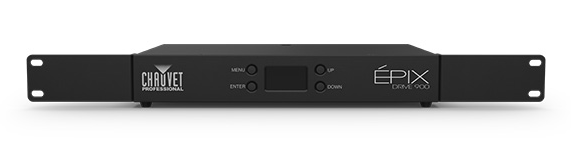

• Quickly and easily configure the ÉPIX Drive 900 using the built-in OLED display
• Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (bar/strip)
• Supports up to 18 ÉPIX Strip Tours or 6 ÉPIX Bar Tours
• Easily daisy chain fixtures directly from the single output of the Drive 900 on a single cable
• Advanced power management design allows you to position the Drive 900 up to 65 ft away from your last fixture (using shielded cable)
• Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate

Specifications:

Construction / Physical:

• Dimensions (with rack ears): 19.02 x 7.60 x 1.97 in (483 x 193 x 50 mm)
• Dimensions (without rack ears): 11.14 x 7.60 x 1.97 in (283 x 193 x 50 mm)
• Weight: 5.42 lb (2.46 kg)
• Weight (shipping weight): 7.72 lb (3.5 kg)
• Threaded Bolt: M12
• Exterior Color: Black
• Housing Material: Steel
• Rackmount: 1U

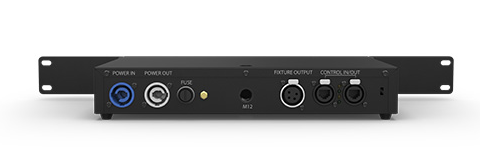

Connections:

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Device Outputs (4-pin XLR): 1
• Physical Linking: 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour
• Data Connectors: Neutrik etherCON
• Cable Length (power): 5 ft (1.5 m)
• Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
• Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
• Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
• Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
• Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 300 ft (91 m)
• Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
• Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)

Control:

• Control Protocol: Art-Net, Kling-Net, sACN
• Control Channels: 6 Art-Net/sACN Universes

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
• Power and Current: 299 W, 2.53 A @ 120 V, 60 Hz
• Power and Current: 299 W, 1.44 A @ 208 V, 60 Hz
• Power and Current: 299 W, 1.31 A @ 230 V, 50 Hz
• Power and Current (resting): 23 W, 0.195 A @ 120 V, 60 Hz
• Power and Current (resting): 32 W, 0.156 A @ 208 V, 60 Hz
• Power and Current (resting): 32 W, 0.133 A @ 230 V, 50 Hz
• Output Voltage: 48 VDC
• Maximum Load: 18 ÉPIX Strip Tour or 6 ÉPIX Bar Tour (per output)

Cable:

• 4PXLREXT16IN
• 4PXLREXT5FT
• 4PXLREXT50FT

Certifications / Qualifications:

• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included:

• ÉPIX Drive 900
• Neutrik powerCON power cord
• Rack ears (2)
• Bag of rack ear mounting screws
• Rubber feet (4)
