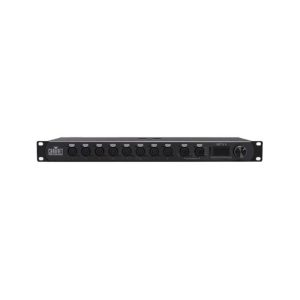

Chauvet Pro Net-X II Art-Net-to-DMX Adapter

Features of the Chauvet Pro Net-X II Art-Net-to-DMX Adapter:

• 5-pin DMX splitter/distributor
• Art-Net/sACN to DMX converter, up to 8 universes
• DMX to Art-Net/sACN converter, up to 8 universes
• Merge two 5-pin DMX universes into a single universe, or merge 2 NET controllers (Art-Net or sACN) into the same universe, then convert to standard 5-pin DMX for the outputs
• HTP (highest takes priority) and LTP (latest takes priority) merge functions supported
• Backup settings and configurations with same or other NET-X IIs
• Web server supported for remote configuration and backup/update

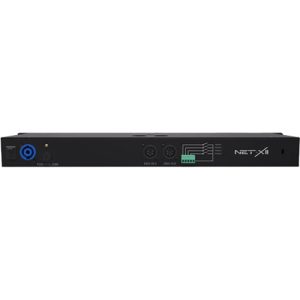

• Integrated Record function allows you to record looks from a controller and save them into memory (10 shows in memory, 100 steps each) to trigger up to 4 shows/zones simultaneously using the 5-wire Phoenix cold contacts on the rear of the unit
• Supports RDM over Art-Net for remote fixture management

Optical

• Dimensions: 19 x 6.22 x 1.73 in (483 x 158 x 44 mm)
• Weight: 4.6 lb (2.1 kg)
• Threaded Bolt: M12
• Exterior Color: Black
• Housing Material: Steel
• Rackmount: 1U

Construction / Physical

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Device Data Inputs: Neutrik® etherCON® (1 total) and 5-pin XLR (2 total)
• Device Data Outputs: 5-pin XLR (8 total)
• Device Date Throughputs: Neutrik® etherCON® (1 total)
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, DMX, sACN
• Merge Support: Yes
• Protocol Merging: (2) Art-net consoles, (2) DMX consoles, (2) sACN consoles

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
• Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
• Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

• Net-X II
• Neutrik powerCON power cord
• Phoenix connector

Optional Accessories

• Clamps
• Neutrik powerCON cables
• Neutrik etherCON cables
• DMX Cables
