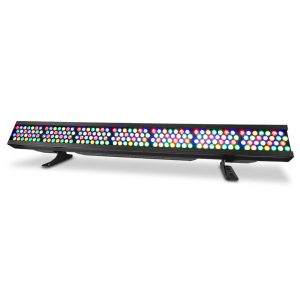

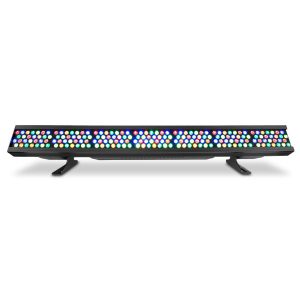

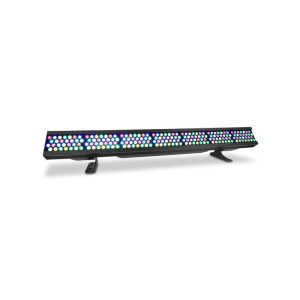

Chauvet Pro Ovation B-1965FC

Features of the Chauvet Pro Ovation B-1965FC:

• Full Color LED (RGBAL) batten fixture for theater, film and production
• Theater-ready with 16-bit dimming of master dimmer and individual colors
• Multiple control personalities for complex programming schemes up to 7 sections of control
• Included holographic filter for use in cyc lighting or wall grazing applications for ultra-smooth color mixing
• Virtual Color wheel with color matched to popular gel colors
• Art-Net, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility
• Neutrik powerCON and Amphenol etherCON compatible connections for power and data linking
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Nearly silent operation for use in studio and theater applications

Specifications:

• OPTICAL
  • Light Source: 196 LEDs (42 red, 42 green, 42 blue, 28 amber, 42 lime) 3 W (650 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • CRI (3200 K): 80
  • Installed Optics: 20°
  • Beam Angle (Horizontal): 24°
  • Beam Angle (Vertical): 21°
  • Beam Angle (Horizontal w/filter): 44°
  • Beam Angle (Vertical w/filter): 22°
  • Field Angle(Horizontal): 41°
  • Field Angle (Vertical): 37°
  • Field Angle (Horizontal w/filter): 75°
  • Field Angle (Vertical w/filter): 41°
  • Lumens: 22,925
  • Illuminance: 5,000 lux @ 5 m
  • Illuminance (w/filter): 1,720 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• DYNAMIC EFFECTS
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
• CONSTRUCTION / PHYSICAL
  • Dimensions: 48.43 x 8.27 x 8.15 in (1230 x 210 x 207 mm)
  • Weight: 32 lb (14.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 47.5 x 3.66 in (1206 x 93 mm)

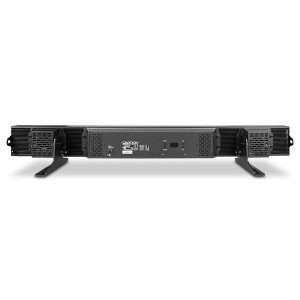

• CONNECTIONS
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR, Amphenol etherCON Compatible
  • Cable Length (power): 5 ft (1.5 m)
• CONTROL
  • Protocol(s): Art-Net, DMX, RDM, sACN
  • DMX Channels: 1 Cell: 3, 3, 4, 5, 8, 9, 10, 10, 17
  • 7 Cell: 21, 28, 35, 45, 52, 59, 70, 96
  • Art-Net Channels: 1 Cell: 3, 3, 4, 5, 8, 9, 10, 10, 17
  • 7 Cell: 21, 28, 35, 45, 52, 59, 70, 96
  • Modes/Personalities: 17 personalities
• ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
  • Power and Current: 421 W, 3.559 A @ 120 V, 60 Hz
  • Power and Current: 427 W, 2.066 A @ 208 V, 60 Hz
  • Power and Current: 429 W, 1.863 A @ 230 V, 50 Hz
  • Power and Current (resting): 26 W, 0.211 A @ 120 V, 60 Hz
  • Power and Current (resting): 46 W, 0.220 A @ 208 V, 60 Hz
  • Power and Current (resting): 47 W, 0.199 A @ 230 V, 50 Hz
