Chauvet Pro Ovation FD-205WW Dimmable Fresnel

Name: Chauvet Pro Ovation FD-205WW Dimmable Fresnel
SKU: OVATION-FD205WW
Availability: InStock

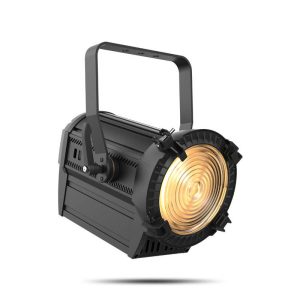

Ovation FD-205WW is a powerful LED Fresnel wash utilizing data and power sensors that make it possible to run it on both conventional dimming power systems and constant power rigs. A massive zoom range of 20Â° to 72Â° and a beautifully soft, warm white wash with high CRI.

No Longer Available at GTRdirect.ca

UPC: 781462218041UPC: 781462218041

Tags: Chauvet Pro Dimmer DMX Channels Fresnel IP20 LED Lighting Fixture Motorized Zoom theater warm whiteCategories: Fresnels, Studio lights, TheatricalSKU: OVATION-FD205WW

Features of the Chauvet Pro Ovation FD-205WW Dimmable Fresnel:

Works perfectly on conventional dimmers or constant power with DMX
Auto-senses what kind of system (dimmers or constant power with DMX) and responds appropriately
Superior low end dimming regardless of power supplied (conventional dimmer/constant power with DMX)
Perfect fixture for the retrofit market, utilizes existing infrastructure flawlessly
Motorized zoom feature available in Dimmer, SENS or DMX modes
16-bit dimming resolution (DMX mode) for smooth fades
Soft and even field of light
Virtually silent operation for use in any situation
Simple and complex DMX channel profiles for programming versatility
Warm white Fresnel-style lighting fixture
Motorized zoom angle between 20° to 72°, manually or via DMX

Specifications:

Optical

Light Source 1 LEDs (WW) 230 W, (2.5 A), 3069 K, 50,000 hours life expectancy
Color Temperature (at full): 3069 K
CRI: 96
Beam Angle: 11° to 53°
Field Angle: 20° to 72°
Zoom Angle: 20° to 72°
Lumens (20°): 6,414
Lumens (72°): 9,047
Illuminance (20°): 5,678 lux @ 5 m
Illuminance (72°): 450 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic or External Dimmer Rack
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 18 Hz
Dim Modes: 5
Dim Curves: 4

Construction / Physical

Dimensions: 16.22 x 11.18 x 10.28 in (412 x 284 x 261 mm)
Weight: 14 lb (6.4 kg)
Exterior Color: Black
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Connections

Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM, Dimmer
DMX Channels: 1, 2 or 5
Modes/Personalities: 3 personalities (UNO, DOS, STD-P)

Electrical

Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
Power Linking: 8 units @ 120 V; 16 units @ 230 V
Power and Current: 182 W, 1.52 A @ 120 V, 60 Hz
Power and Current: 188 W, .819 A @ 230 V, 50 Hz
Breaker Size: T3.15 A, 250 V

Certifications / Qualifications

CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

Ovation FD-205WW
Neutrik® powerCON® power cord
Gel frame (7.5 in/190.5 mm accessories)

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5€³ Barndoor
