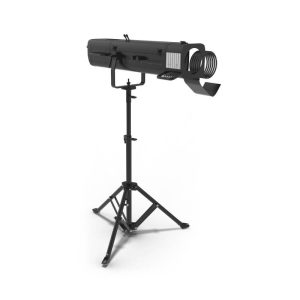

Chauvet Pro Ovation SP-300CW LED Followspot

Features of the Chauvet Pro Ovation SP-300CW LED Followspot:

• High power LED followspot with stand for mid-sized venues
• 5,500 K cool white spot with 10° to 20° zoom
• Full blackout, 24-leaf iris
• Manual linear dimmer
• 6-position, removable color changer
• Virtually silent operation for use in studio and theater applications
• Easy access hatch for cleaning optics

Specifications

Optical

• Light Source: 1 LEDs (CW) 260 W, (3.6 A), 5,524 K, 50,000 hours life expectancy
• Color Temperature (at full): 5524 K
• CRI: 88
• Beam Angle: 10° to 14°
• Field Angle: 10° to 18°
• Zoom Angle: 10° to 18°
• Lumens (9°): 6,401
• Lumens (17°): 6,453
• Illuminance (Narrow): 17,296 lux @ 5 m
• Illuminance (Wide): 7,330 lux @ 5 m
• PWM Frequency: 2300 Hz

Dynamic Effects

• Colors: 6 + white
• Dimmer: Manual, Linear
• Zoom: Manual
• Focus: Manual
• Iris: 24-leaf, full blackout

Construction / Physical

• Dimensions: 45.8 x 13.98 x 15.55 in (1,150 x 355 x 395 mm)
• Dimensions (Stand with fixture, optimal open): 46.8 x 13.98 x 62.4 in (1,189 x 355 x 1,585 mm)
• Diameter (Stand with fixture, optimal open): 33.8 in (stand) 52.8 in (fixture)
• Dimensions (Stand with fixture, max open): 46.8 x 13.98 x 81.6 in (1,189 x 355 x 2,073 mm)
• Diameter (Stand with fixture, max open): 39.6 in (stand) 52.8 in (fixture)
• Weight: 49 lb (22.2 kg)
• Exterior Color: Black
• Housing Material: Steel

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon (powerCON Compatible)
• Power Input: Seetronic Powerkon (powerCON Compatible)
• Cable Length (power): 5 ft (1.5 m)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 207 W, 1.69 A @ 120 V, 60 Hz
• Power and Current: 211 W, 1.02 A @ 208 V, 60 Hz
• Power and Current: 211 W, 0.92 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

• Ovation SP-300CW
• Seetronic Powerkon IP65 power cord
• Tripod stand
