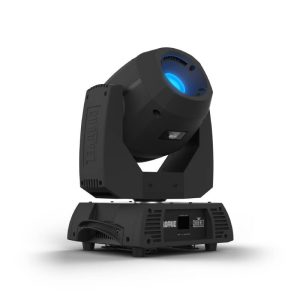

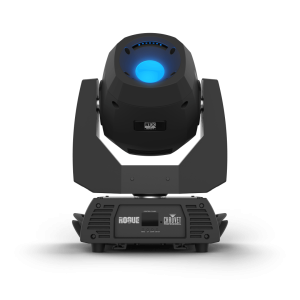

Chauvet Pro Rogue R1X Spot LED Moving Head

Features of the Chauvet Pro Rogue R1X Spot LED Moving Head:

• Bold, bright 170 W LED light engine for punchy, solid beams
• Color wheel with 8 colors, split color ability, and continuous variable-speed scrolling
• Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris and 3-facet prism for stunning visual effects
• Neutrik® powerCON® power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R1 Spots
• Selectable PWM settings to maintain flicker free operation on camera
• Simple and complex DMX channel profiles for programming versatility

Specifications

Optical

• Light Source: 1 LEDs (CW) 170 W, (7.4 A), 9491 K, 50,000 hours life expectancy
• Color Temperature (at full): 9491 K
• Beam Angle: 16°
• Illuminance (total): 4,620 lux @ 5 m
• Selectable LED Power output: 50-100
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/250°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
• Colors: 8 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal),continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 26.9 mm (outside), 22.5 mm (image), 0.5 mm (max. thickness)
• Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 25 mm (outside), 23 mm (image), 3 mm (max thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 22 Hz
• Move in Black: Yes

Construction / Physical

• Dimensions (single unit): 11.10 x 14.20 x 17.60 in (282 x 360 x 447 mm)
• Weight (single unit): 37.6 lb (17.1 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

Connections

• Power Connection: Edison (Local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 16 or 19
• Modes/Personalities: 2 personalities (16, 19)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
• Power and Current: 319 W, 2.69 A @ 120 V, 60 Hz
• Power and Current: 303 W, 1.49 A @ 208 V, 60 Hz
• Power and Current: 297 W, 1.33 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET
• IP Rating: IP20, dry location

What’s Included

• Rogue R1X Spot
• Neutrik powerCON power cord
• 2 Omega brackets with mounting hardware

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX Cables
• powerCON extension cables
