Chauvet Pro WELL FIT X

Roll into any production, indoors or out, with a road-worthy six-unit kit with built-in charging capability and the new ability to perform software updates to the fixtures while in their charging case.

Features of the Chauvet Pro WELL FIT X

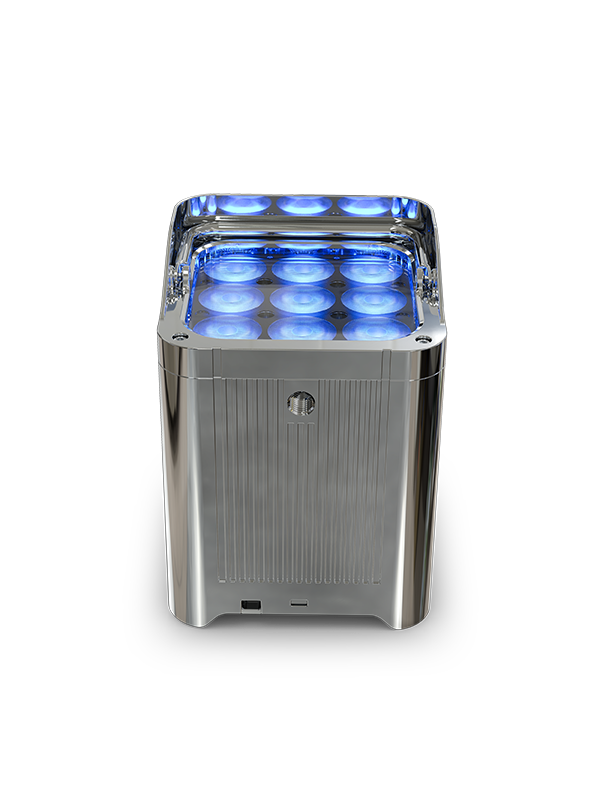

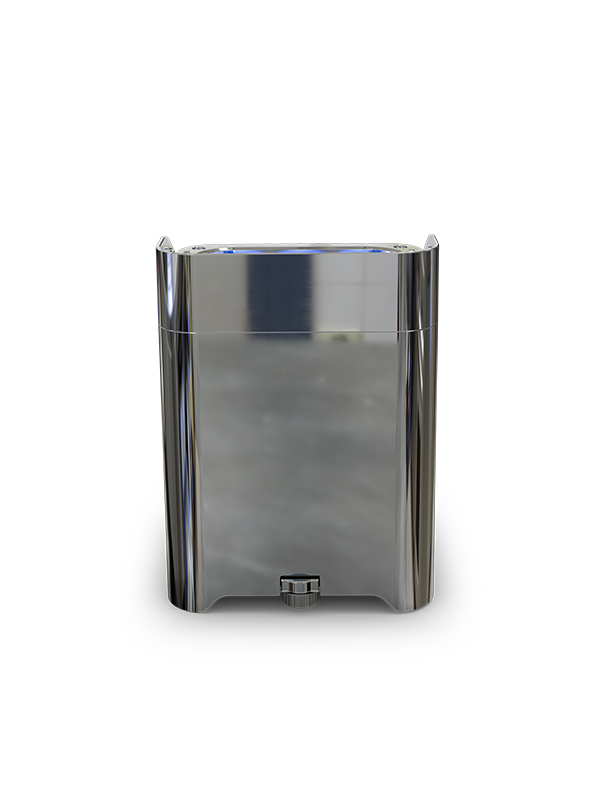

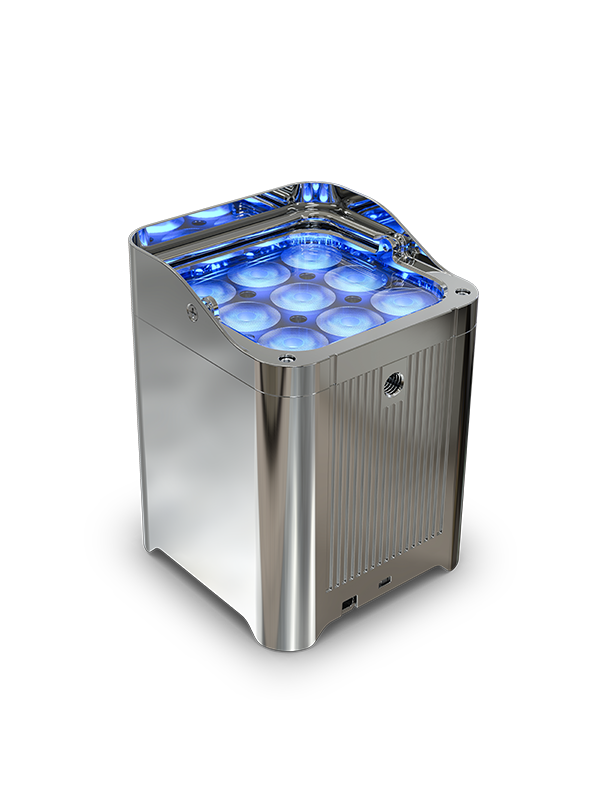

• A fully realized kit of (6) battery operated chrome IP65-rated uplight-style fixtures with (9) RGB warm white LEDs, and a beam angle of 11.3 degrees

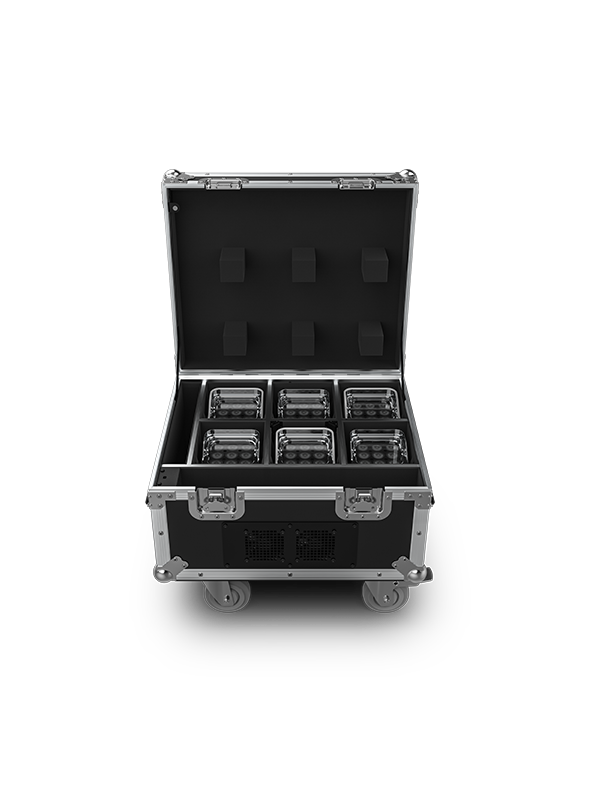

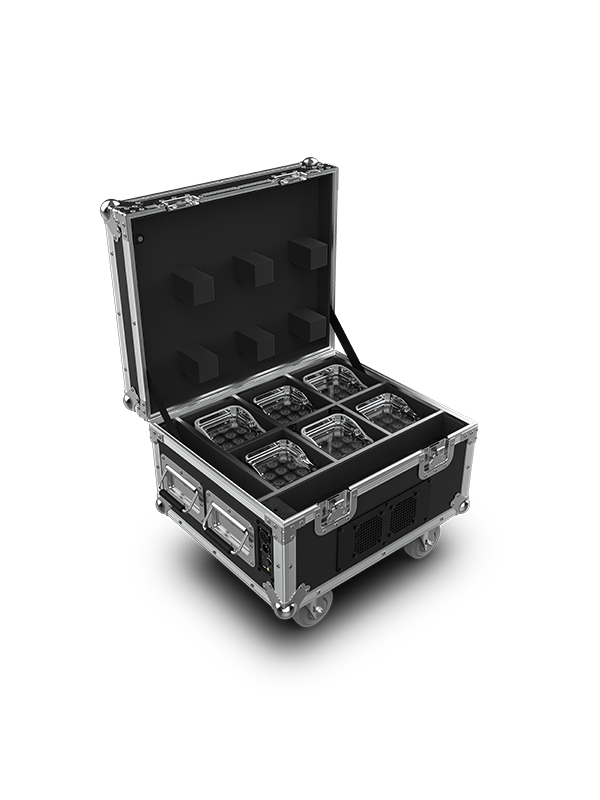

• Charging case designed to charge with the lid closed to save warehouse space
• Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
• Built-in battery charger allows fixture to operate while charging
• Control over RDM, CRMX, or RF
• Easy connection to WELL CONNECT box and ConnectFX app
• USB-C port for convenient software updates
• Pressure equalizing M6 Gore valve
• Adjustable front foot for adjusting fixture angle
• Kensington lock position
• Built-in safety cable attachment point
• Easy-to-read OLED display
• Built-in theft alarm (audio and visual notification)
• Built-in PWM adjustment
• Included RF remote
• Included 6 pack charging case

Specifications

Optical

• Light Source: 9 LEDs (RGBWW) 13.2 W, (556 mA), 50,000 hours life expectancy
• Color Temperature (range): 2600 to 10,000K
• Beam Angle: 11.5°
• Lumens: 1762 lm (OFF battery setting)
• Illuminance: 1087 lux @ 5 m (OFF battery setting)
• Lumens: 1944 lm (5-hour battery setting)
• Illuminance: 1205 lux @ 5 m (5-hour battery setting)
• Lumens: 1233 lm (8-hour battery setting)
• Illuminance: 764 lux @ 5 m (8-hour battery setting)
• Lumens: 821 lm (12-hour battery setting)
• Illuminance: 507 lux @ 5 m (12-hour battery setting)
• Lumens: 550 lm (18-hour battery setting)
• Illuminance: 339 lux @ 5 m (18-hour battery setting)
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable

Construction / Physical

• Dimensions – Fixture: 4.9 x 4.9 x 6.9 in (126 x 126 x 176 mm)
• Dimensions – 6 pack case: 21.8 x 18.5 x13.5 in (554 x 470 x 345 mm)
• Weight (single unit) 7.0 LB (3.2 kg)
• Weight (shipping weight): 98.3 lbs (44.6 kg)
• Exterior Color: Chrome
• Housing Material: Aluminum diecast

Connections

• Power Connection: 5.5mm right-angle barrel jack
• Cable Length (charger): 8.5 ft (2.6m) (sold separately)
• Power Input (charging case): Seetronic TRUE1 IP65
• Power Output (charging case): Seetronic TRUE1 IP65
• Software Connection: USB-C

Control

• Control Protocol: RDM, CRMX, NFC, RF
• DMX Channels: 5, 8, or 12
• Modes/Personalities: 3 personalities (5Ch, 8Ch, 12Ch)
• Wireless WDMX “G” Compatibility: G4S
• Wireless Lumen Radio Compatibility: CRMX

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Single unit

• Power and Current (single unit charging): 43 W, 0.74 A @ 100 V, 60 Hz
• Power and Current (single unit charging): 42 W, 0.64 A @ 120 V, 60 Hz
• Power and Current (single unit charging): 42 W, 0.52 A @ 208 V, 60 Hz
• Power and Current (single unit charging): 42 W, 0.47 A @ 230 V, 50 Hz
• Power and Current (single unit charging): 42 W, 0.47 A @ 240 V, 50 Hz

6 Pack case

• 3 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
• Power and Current:239W, 3.94A @ 100V
• Power and Current: 238W, 3.44A @ 120V
• Power and Current: 235W, 2.48A @ 208V
• Power and Current: 235W, 2.32A @ 230V
• Power and Current: 235W, 2.27A @ 240V

Battery

• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 1.6 hours
• Battery Life: 3hr, 5hr, 8hr, 12hr
• Battery Power: 25.9 V, 4.4 Ah

Certifications / Qualifications

• CE, FCC, UKCA
• IP Rating: IP65, temporary outdoor/ wet use (fixture)
• IP Rating: IP20 (case)
• Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
• Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

What’s Included

• (6) WELL FIT X
• (1) 6 slot charging case
• (1) basic RF controller
• (1) True 1 power cable
• (1) QRG
