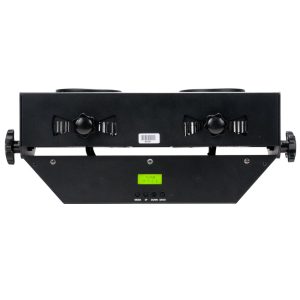

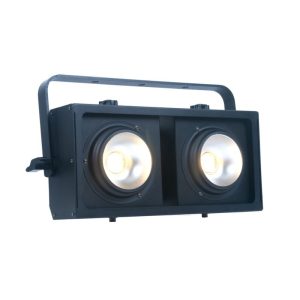

Elation CUEPIX Blinder WW2
The Elation CUEPIX Blinder WW2 features (2) long life 100W Warm White 3,200K COB LEDs, a 60° beam angle, RDM (Remote Device Management), individual control of each COB module including manual pan focus, variable and selectable dimming curves, strobe effects, flicker free operation for TV and Film.
Features of the Elation CUEPIX Blinder WW2:
High Power Long Life Warm White COB LEDs
60° Beam Angle / 80° Field Angle
Individual Control of Each COB Module
Dimming: 0% – 100% of Each COB Module
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM
Stand Alone Operation with Primary/Secondary Function
Integrated Rigging Bracket
Specifications:
SOURCE
(2) 100W Warm White 3,200K COB LEDs
100,000 Hour Average Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
5900 Max LUX (548 fc) @1M (Full On)
EFFECTS
Strobe
Variable / Selectable Dimming Curves

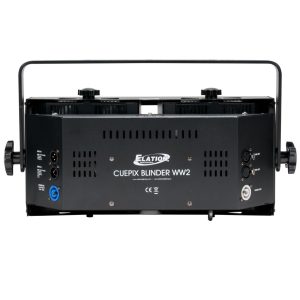

CONTROL / CONNECTIONS
4 DMX Channel Modes (1 / 2 / 3 / 4)
4 Button Control Panel and LCD Menu Display
3pin and 5pin DMX In/Out
RDM* (Remote Device Management) *Software Version 1.13 or Higher
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 18.6” (472 mm)
Width: 7.1” (181.2 mm)
Height: 10.2” (259.5 mm)
Weight: 11.2 lbs. (5.1 kg)
ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
229W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
