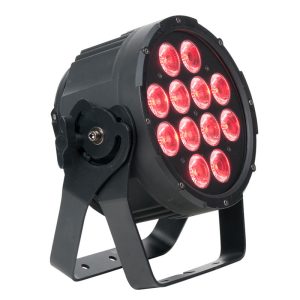

Elation SIXPAR 200IP Outdoor 12 x 12W LED Par

(1 customer review)

The new Elation SIXPAR 200IP Outdoor features (12) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 150W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).

$899.00

UPC: 837874017250 SKU: SIXPAR-200IP Category: Tags:
Elation

FEATURES of the Elation SIXPAR 200IP Outdoor

  • IP65 Rated
  • 15° Beam 25° Field Angles
  • 5 Variable Dimming Curve Modes
  • Dual Yoke / Floor Stand
  • Multiple Unit Power Linking
  • RDM – Remote Device Management
  • Rugged Die-Cast Aluminum Exterior
  • Flicker Free Operation for TV and FILM

Specifications

SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
22,250 LUX 2.067 FC @3.3’ (1m) (15° Full ON)
5,600 LUX 520 FC @6.6’ (2m) (15° Full ON)
2,500 LUX 232 FC @9.8’ (3m) (15° Full ON)
1,360 LUX 126 FC @13.1’ (4m) (15° Full ON)
930 LUX 86 FC @16.5’ (5m) (15° Full ON)

EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% – 100%
5 Variable Dimming Curve Modes

CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)

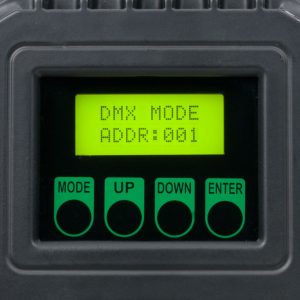

(4) Button Touch Control Panel
LCD Menu Display

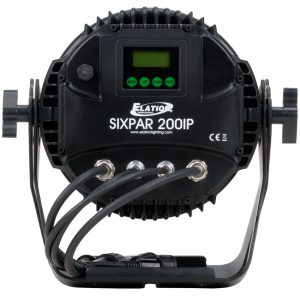

IP DMX In/Out
IP Power In/Out

SIZE / WEIGHT
Length: 12.3” (313mm)
Width: 6.2” (157mm)
Vertical Height: 11.8” (300mm)
Weight: 12.6 lbs. (5.7 kg)

ELECTRICAL / THERMAL
AC 110-250V – 50/60Hz
150W Max Power Consumption
Power Linking: 8pcs @110V / 18pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm

APPROVALS / RATINGS
CE | cETLus | IP65

INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360°)

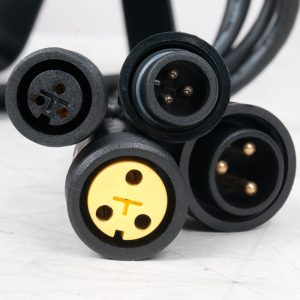

INCLUDED ITEMS
Male Edison to IP Female Power Cable 6,6 ft. (2m)
Male 3pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
Female 3pin XLR to IP Male DMX Output Cable 3.3 ft (1m)

Brand

Elation professional

Elation professional offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.
