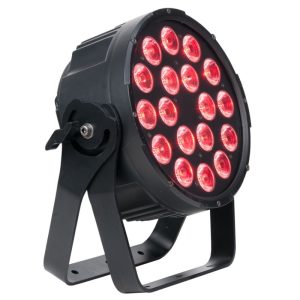

Elation SIXPAR 300 18 x 12W RGBAW+UV LED Par
The new indoor version Elation SIXPAR 300 18 features (18) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 220W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).
Features of the Elation SIXPAR 300 18 x 12W RGBAW+UV LED Par
- 15° Beam 25° Field Angles
- 5 Variable Dimming Curve Modes
- Dual Yoke / Floor Stand
- Multiple Unit Power Linking
- RDM – Remote Device Management
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Specifications:
SOURCE
(18) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
24,500 LUX 2,276 FC @3.3’ (1m) (15° Full ON)
8,500 LUX 790 FC @6.6’ (2m) (15° Full ON)
3,950 LUX 367 FC @9.8’ (3m) (15° Full ON)
2,150 LUX 200 FC @13.1’ (4m) (15° Full ON)
1,350 LUX 125 FC @16.5’ (5m) (15° Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% – 100%
5 Variable Dimming Curve Modes
CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display

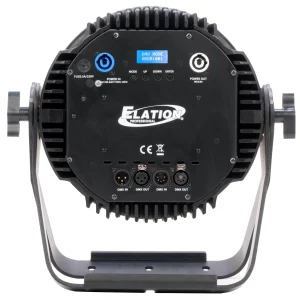

3pin & 5pin DMX and powerCON In/Out
SIZE / WEIGHT
Length:14.4” (365mm)
Width: 4.9” (125mm)
Vertical Height: 14.4” (365mm)
Weight: 18.0 lbs. (8.1 kg)
ELECTRICAL / THERMAL
AC 110-250V – 50/60Hz
220W Max Power Consumption
Power Linking: 5pcs @110V / 10pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP20
INSTALLATION

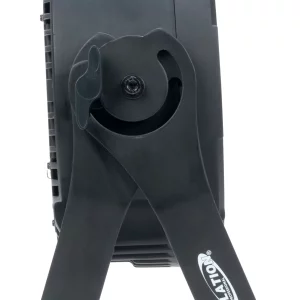

Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360°)
