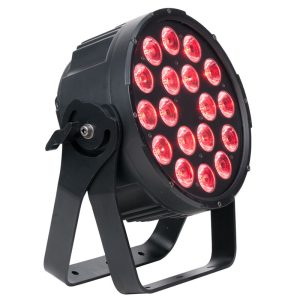

Elation SIXPAR 300IP Outdoor 18 x 12W LED Par

Features of the Elation SIXPAR 300IP Outdoor

• IP65 Rated
• 15° Beam 25° Field Angles
• 5 Variable Dimming Curve Modes
• Dual Yoke / Floor Stand
• Multiple Unit Power Linking
• RDM – Remote Device Management
• Rugged Die-Cast Aluminum Exterior
• Flicker Free Operation for TV and FILM

Specifications:

SOURCE
(18) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
24,500 LUX 2,276 FC @3.3’ (1m) (15° Full ON)
8,500 LUX 790 FC @6.6’ (2m) (15° Full ON)
3,950 LUX 367 FC @9.8’ (3m) (15° Full ON)
2,150 LUX 200 FC @13.1’ (4m) (15° Full ON)
1,350 LUX 125 FC @16.5’ (5m) (15° Full ON)

EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% – 100%
5 Variable Dimming Curve Modes

CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)

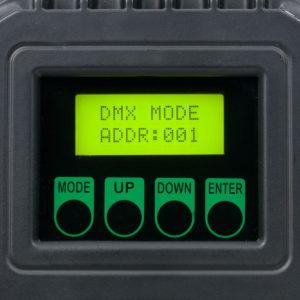

(4) Button Touch Control Panel
LCD Menu Display

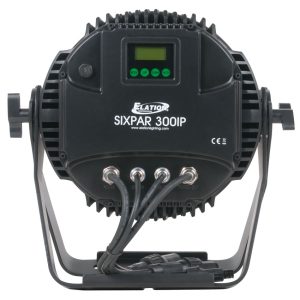

IP DMX In/Out
IP Power In/Out

SIZE / WEIGHT
Length: 14.4” (365mm)
Width: 6.2” (157mm)
Vertical Height: 14.4” (365mm)
Weight: 19.2 lbs. (8.7 kg)

ELECTRICAL / THERMAL
AC 110-250V – 50/60Hz
220W Max Power Consumption
Power Linking: 5pcs @110V / 10pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm

APPROVALS / RATINGS
CE | cETLus | IP65

INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360°)

INCLUDED ITEMS

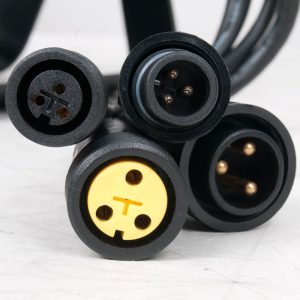

Male Edison to IP Female Power Cable 6,6 ft. (2m)
Male 3pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
Female 3pin XLR to IP Male DMX Output Cable 3.3 ft (1m)
