Furman ELITE-15 DM I 15 Amp Conditioner Power HT Dual Meter

Features of the Furman ELITE-15 DM I 15 Amp Conditioner Power HT Dual Meter:

• SMP provides the highest level of protection available
• LiFT significantly reduces AC line noise
• E.V.S. protects equipment from dangerous overvoltage conditions
• Zero ground contamination circuitry assures delivery of pure AC
• Laboratory grade dual voltage and current meters
• 12 volt triggering for remote control

Specifications:

General

• Family Elite Series
• Line Voltage 120 (Volts)
• Number of Outlets 13
• Number of Isolated Banks 3
• Outlet Descriptions 9 (linearly filtered outlets – rear panel – (6) switching – 12V triggered)
  4 (linearly filtered outlets with additional ultrasonic filtering for digital or video components – (2) switching – 12V triggered)
• Rack Mountable Yes
• Rack Ears Included Yes

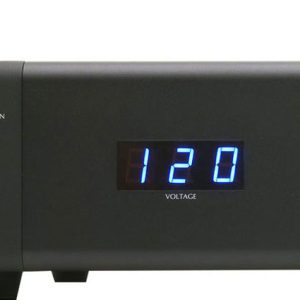

• Front Panel Meter(s) LED voltmeter displays incoming line voltage, LED ammeter displays output current draw
• Front Media Light(s) No
• Control On/Off switch on front panel. 12 Volt triggering for remote control.
• Voltage Regulation No
• Compliance NRTL-C
• USB Charging N/A
• Low Voltage Trigger 12V, In/Out
• Dimensions 4″ H x 17″ W x 14.75″ D (Standard 2 RU height without feet)
• Weight 14 lbs
• Power Consumption 12 Watts for display and control circuits independent of actual load

AC Protection

• AC Protection Technology Extreme Voltage Shutdown
  Series Multi-Stage Protection
  Non-sacrificial protection with zero ground contamination
• Under-Voltage Shut off 85V
• Over-Voltage Shut off 140V ±3V
• Maximum Current Rating 15 (Amps)
• Initial Clamping Level 188 VAC peak @ 3,000 Amps

Filtration

• Filtration Technology LiFT
• Filtration Rating>40 dB from 10 Khz. – 100 kHz.
  80 dB from 100 Khz. – 1GHz.
  (Linear attenuation curve from 0.05 _ 100 ohms line impedance)
• Signal Line Protection Tel
  3 Cable/Satellite
