Ground Support Sleeve Block for F34 Truss Segment Systems

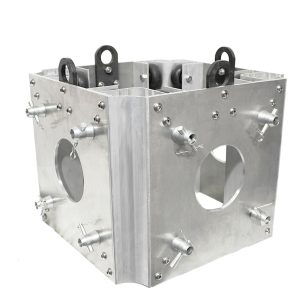

ProX XT-BLOCK Ground Support Sleeve Block for F34 Truss Systems

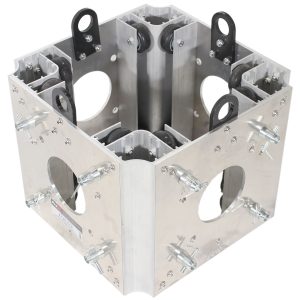

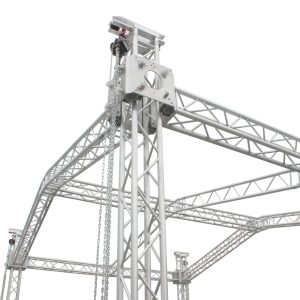

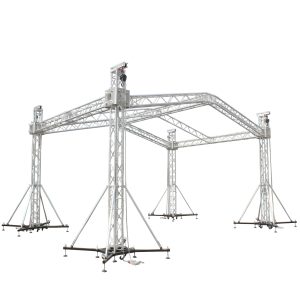

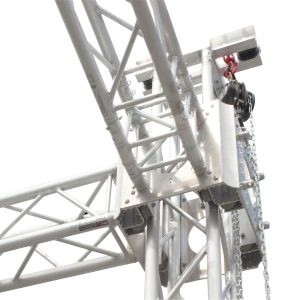

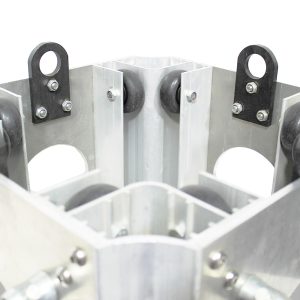

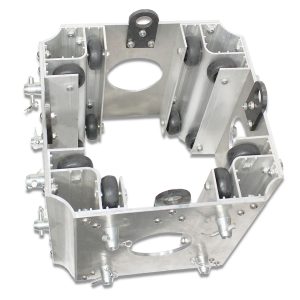

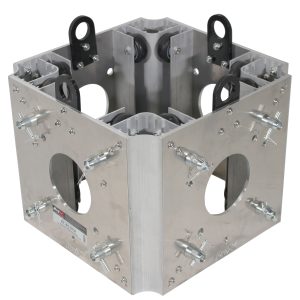

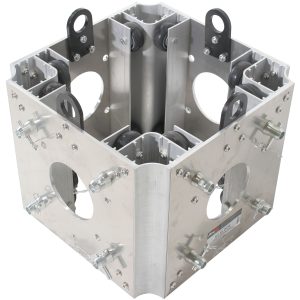

The ProX XT-BLOCK MK2 Truss Ground Support Sleeve Block is designed for F34 Series 12″ Trussing and it includes 4 connecting sides and is one the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It’s a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations. ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength. Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs — while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors and accessories that add stability while expanding on limitless design configurations.
Always know your load weight for your equipment: VERY IMPORTANT – CLICK HERE for Truss Loading Chart.
- Tolerance Free Standard Conical connector
- Main tube wall thickness of .08in
XT-SQ SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb per 3.28 ft / 9,5kg per meter
- Main Tube: 2in / 50mm
- Wall Thickness: .08in / 2mm
- Braces: .75in / 20mm
- Manufactured in our Own Factory!
- Material: EN-AWT6 6082 Aluminum
- TUV Certified Aluminium Welding
- Built to exacting specifications
- Includes tapered shear pins with clips
TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
ProX Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers F34 trussing products.
Standard Size F34 Square Truss Configurations fit most F34 Truss manufacturers with conical couplers.
| Weight | 80 lbs |
|---|---|
| Dimensions | 24 × 24 × 20 in |
