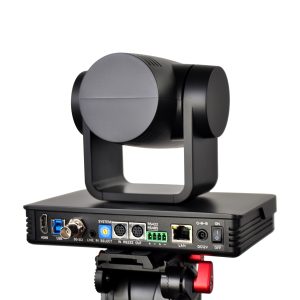

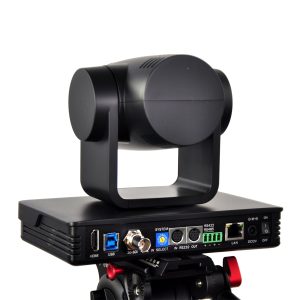

Minrray UV570S-30-SU-IR-POE camera 30x optical zoom, HDMI, USB and LAN output

Features of the Minrray UV570S-30-SU-IR-POE camera 30x optical zoom, HDMI, USB and LAN output:

UV570 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.

– Multiple optical lens

5X, 12X, 20X, 30X optical zoom lens for selection; 5X lens has 83 degree wide angle with little distortion.

– Leading Auto Focus Technology

Leading autofocus algorithm makes lens a fast, accurate and stable auto-focusing.

– Low Noise and High SNR

Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.

– Multiple video output interfaces

HDMI, SDI, USB3.0 and LAN ports for video output. Both video and audio can be output from HDMI, SDI, LAN, USB3.0 at the same time. The transmission distance of SDI under 1080p60 is 100 meters.

– 0 supports dual code streams

Supports both main and sub-code streams output simultaneously; support YUY2, MJPEG, H.264, NV12, H.265 video encoding format.

– Built-in Gravity Sensor

Support automatic PTZ auto-flip function and easy to install.

– Multiple Network Protocols

Support ONVIF,GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS,SRT, NDI protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS).Supports RTP multicast mode.

– Control protocol

RS422(compatible with RS485), RS232-in, RS232-out, and RS232 interface supports cascade connection.

– Multiple Control Protocols

Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.

– Extremely Quiet PTZ

Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.

– Multiple Preset

Support 255 preset positions (the remote controller is set to 10 preset positions).

– Multiple Remote Controller

Users can choose infrared remote controller or wireless remote controller according to the environmental conditions.2.4G wireless remote controller is not affected by the angle, distance, infrared interference.

– Wide Application

Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.

– Low-power Sleep Function

Support low-power sleep/wake up, the consumption is lower than 400 mW under sleep mode.
