Mipro ACT-2401/ACT-24HC Single-Channel 2.4 GHz Handheld System

Specifications:

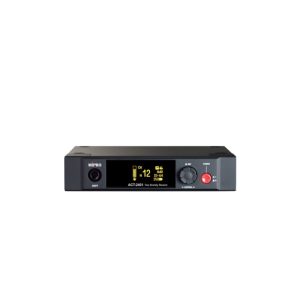

Receiver

Chassis: EIA Standard 19″ 1/2U
Display Graphic: OLED
Frequency Range: 2.4GHz ISM band (2.4 – 2.4835GHz)
Preset Frequency: 12
Frequency-hopping: Each channel has 4 preset hopping frequencies
Receiving Mode: Dual-tuner Digital Diversity
Audio Sampling: 24-bit / 44.1 kHz
Sensitivity: -95 dBm
S/N Ratio: > 115 dB(A)
T.H.D.: 0.1 % @ 1 kHz
Audio Frequency Response: 20 Hz – 20 kHz (-2 dB)
Output Connectors: Balanced XLR & Unbalanced 6.3 mm (1/4 “)
Audio Output Adjustment: 0 dB (standard), -10 – +20 dB adjustable range
Latency: < 4.0 ms
Antenna: 2 × 50 Ω fixed antenna
Power Supply: External AC Power Supply
Power Consumption: 1.6 W
Dimensions: 210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 ”
Weight: Approx. 0.75 kg / 1.7 lbs
Operating Temperature: -10 – +60℃

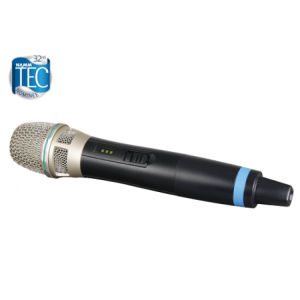

Transmitter

Frequency Range: 2.4GHz ISM band (2.4 – 2.4835GHz)
Channel Set-Up: ACT Sync
RF Output Power: 2 mW / 10 mW switchable (country dependent)
Transmitting Mode: Frequency hopping
Max. Audio Input: 6.5 dBV
Battery Meter: 4-level green / red LED display
Battery Type: ICR 18500 rechargeable lithium battery × 1
Current Consumption: Approx. 138 mA
Operating Time: A 25-minute fast charge provides up to 1 hour operation. Minimum 10 hours of operation per 4-hour full charge (depending on the battery quality)
Dimensions: (Ø × L) 51× 248 mm / 2.0 × 9.8 ”
Net Weight: Approx. 255 g / 9 oz
