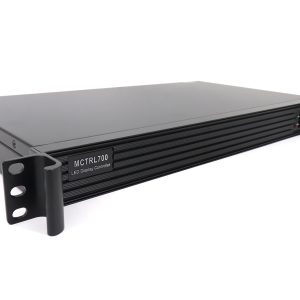

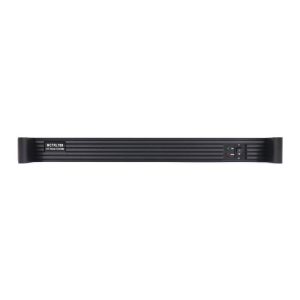

NovaStar MCTRL700 LED Video Controller
MCTRL700 is a video controller developed by NovaStar. It supports 1x DVI input, 1— HDMI input, 1— audio input, and 6 Ethernet outputs. A single unit can load 1920—1200@60Hz. MCTRL700 is mainly suitable for applications in the rental and fixed installation sectors, such as concerts, live broadcasting, monitoring centers.
Features of the NovaStar MCTRL700 LED Video Controller:
- 3 — Input connectors
- 1—SL-DVI (IN-OUT)
- 1—HDMI 1.3 (IN-OUT)
- 1—AUDIO
- 6—Gigabit Ethernet outputs
- 1—Type-B USB control port
- 2—UART control ports
- Used for device cascading. Up to 20 devices can be cascaded.
- Pixel level brightness and chroma calibration.
Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
Specifications:

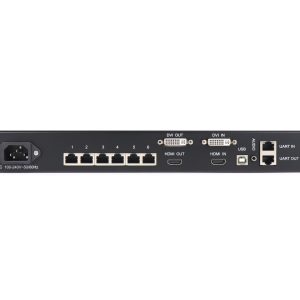

| Connector Type | Connector Name | Description |
| Input | DVI IN | 1x SL-DVI input connector
l Resolutions up to 1920—1200@60Hz l Custom resolutions supported Maximum width: 3840 (3840—600@60Hz) Maximum height: 3840 (548—3840@60Hz) l HDCP 1.4 compliant l DOES NOT support interlaced signal input. |
| HDMI IN | 1x HDMI 1.3 input connector
l Resolutions up to 1920—1200@60Hz l Custom resolutions supported Maximum width: 3840 (3840—600@60Hz) Maximum height: 3840 (548—3840@60Hz) l HDCP1.4 compliant l DOES NOT support interlaced signal input. |
|
| AUDIO | Audio input connector | |
| Output | 1~6 | 6x RJ45 Gigabit Ethernet ports
l Capacity per port up to 650,000 pixels l Redundancy between Ethernet ports supported |
| HDMI OUT | 1x HDMI 1.3 output connector for cascading | |
| DVI OUT | 1x SL-DVI output connector for cascading | |
| Control | USB | Type-B USB 2.0 port to connect to PC |
| UART IN/OUT | Input and output ports to cascade devices. Up to 20 devices can be cascaded. | |
| Power | AC 100V-240V~50/60Hz | |
