NovaStar NovaPro UHD Jr All-in-One LED display controller

Name: NovaStar NovaPro UHD Jr All-in-One LED display controller
SKU: NovaProUHDJr
Availability: InStock

Main view of All-in-One LED display controller

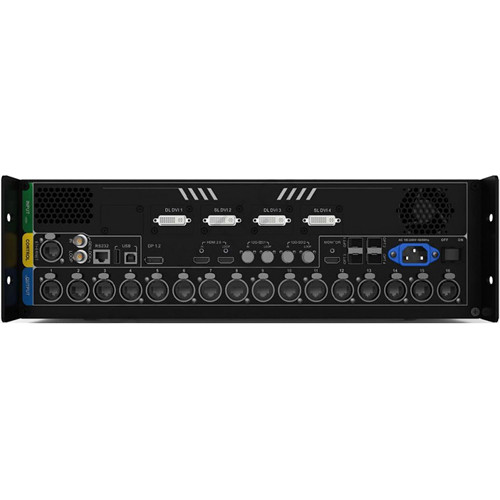

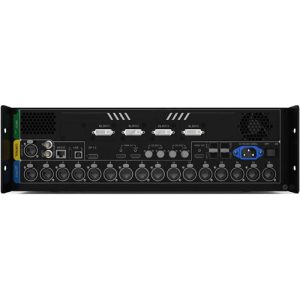

Back view of All-in-One LED display controller

The NovaPro UHD Jr is a NovaStar`s new all-in-one controller that features excellent video processing capabilities, sending card functions and LED screen configurations. The NovaPro UHD Jr provides a variety of video input connectors, supporting 4K—2K@60Hz image.

$8,398.60

UPC: 619185748166UPC: 619185748166

Tags: Audio LED LED Controller LED Video Wall NovaStar Video Video ProcessorCategories: All in one processors, Broadcast and Studio Production Video Wall Control Systems, Corporate Presentations and Boardrooms Video Wall Control Systems, Houses of Worship Video Wall Control Systems, Large-Scale Event Management Video Wall Control SystemsSKU: NovaProUHDJr

Brand: NovaStar Tech

Description
Reviews 0

Features of the NovaStar NovaPro UHD Jr LED display controller:

A variety of inputs and outputs
Provides 1 — DP 1.2, 4 — DVI, 1 — HDMI 2.0 with loop output and 2 — 12G-SDI with loop output.
More output connectors, larger loading capacity
Provides 16 — Neutrik Ethernet output and 4 — optical fiber output, with loading capacity up to 10,400,000 pixels.
The maximum width is 16K and maximum height is 8K.
DVI mosaic
An input source can be made up of at most 4 DVI input sources.
HDR output
Greatly enhances display image quality, providing more clear and vivid image.
Decimal frame rates
The supported frame rates are 23.98, 29.97 and 59.94.
Low-latency output
Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar Armor series receiving cards
(A8/A8s/A9s/A10s Plus).
Customized BKG settings
Supports pure color and image BKGs.
Personalized image scaling
Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom.
Capture function
Captures input source image which can be used as a BKG image.
Image mosaic
Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor.
V-Can (smart control software from NovaStar) supported
10 presets
At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
EDID management supported
Supports custom EDID and standard EDID.

Specifications:

Input
Connector	Quantity	Description
DVI	4	Four DVIs are all single-link DVI connectors by default 4 — DVI inputs Each DVI: Input resolution up to 1920—1200@60Hz, downward compatible 4 DVI input sources constitute 1 input source (DVI MOSAIC). Standard resolutions supported
		In dual-link mode DVI 1 and DVI 3 are dual-link DVI connectors while DVI 2 and DVI 4 are unavailable. DVI 1/DVI 3: Input resolution up to 3840—1080@60Hz, downward compatible Standard resolutions supported
12G-SDI	2	Input resolution up to 4096—2160@60Hz, downward compatible Standard resolutions unsupported
DP 1.2	1	Input resolution up to 3840—2160 @60Hz, downward compatible HDCP 1.3 compliant Standard resolutions supported
HDMI 2.0	1	Input resolution up to 3840—2160 @60Hz, downward compatible HDCP 1.4 and HDCP 2.2 EDID management Standard resolutions supported
Output
Connector	Quantity	Description
Ethernet port	16	16 — Neutrik Gigabit Ethernet output connectors, allowing for a loading capacity of up to 10,400,000 pixels Maximum loading capacity: Max. width: 16K, max. height: 8K Maximum loading capacity of a single Ethernet port: 8-bit input source: 650,000 pixels 10-bit/12-bit input source: 320,000 pixels
OPT 14	4	10G optical connectors OPT 1 transmits data of Ethernet ports 18. OPT 2 transmits data of Ethernet ports 916. OPT 3 serves as the hot backup or copy for OPT 1. OPT 4 serves as the hot backup or copy for OPT 2.
HDMI 2.0 LOOP	1	HDMI loop output connector Only 1 level of device cascading supported HDCP 1.4 EDID management
12G-SDI LOOP	2	SDI loop output connectors
MONITOR	1	HDMI connector for output monitoring
		Resolution up to 1920—1080@60Hz
Control
Connector	Quantity	Description
ETHERNET	1	Connect to the PC for communication, or connect to the Web for device control.
USB (Type-B)	1	Connect to the PC for device control. Used as the input connector to connect a NovaPro UHD Jr unit for image mosaic
USB (Type-A)	1	Used as the output connector to connect a NovaPro UHD Jr unit for image mosaic
GENLOCK IN- LOOP	1	Connect to a synchronization signal to synchronize all the connected NovaPro UHD Jr units.
RS232	1	Connect to the control device.
