Obsidian Control Netron EN12i 19in Install 12-Port Node

Features of the EN12i 19in Install 12-Port Node:

• RJ45, screw terminal or IDC connectivity
• Back facing wiring plates for permanent rack installation
• Convenience Network and DMX port on front plate
• RDM, Art-Net and sACN support
• Factory and user presets for plug and play setups
• Line Voltage or PoE powered
• 1.8” OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Customizable routing and merging options
• Remote configuration via internal webpage
• Contact closures and Remote Button Station (optional) for cue or preset recall
• Powder-coated aluminum rackmount housing
• Unlocks ONYX NOVA 4 Universe License
• NETRON CLU for remote configuration and firmware updates

Specifications:

• Connections

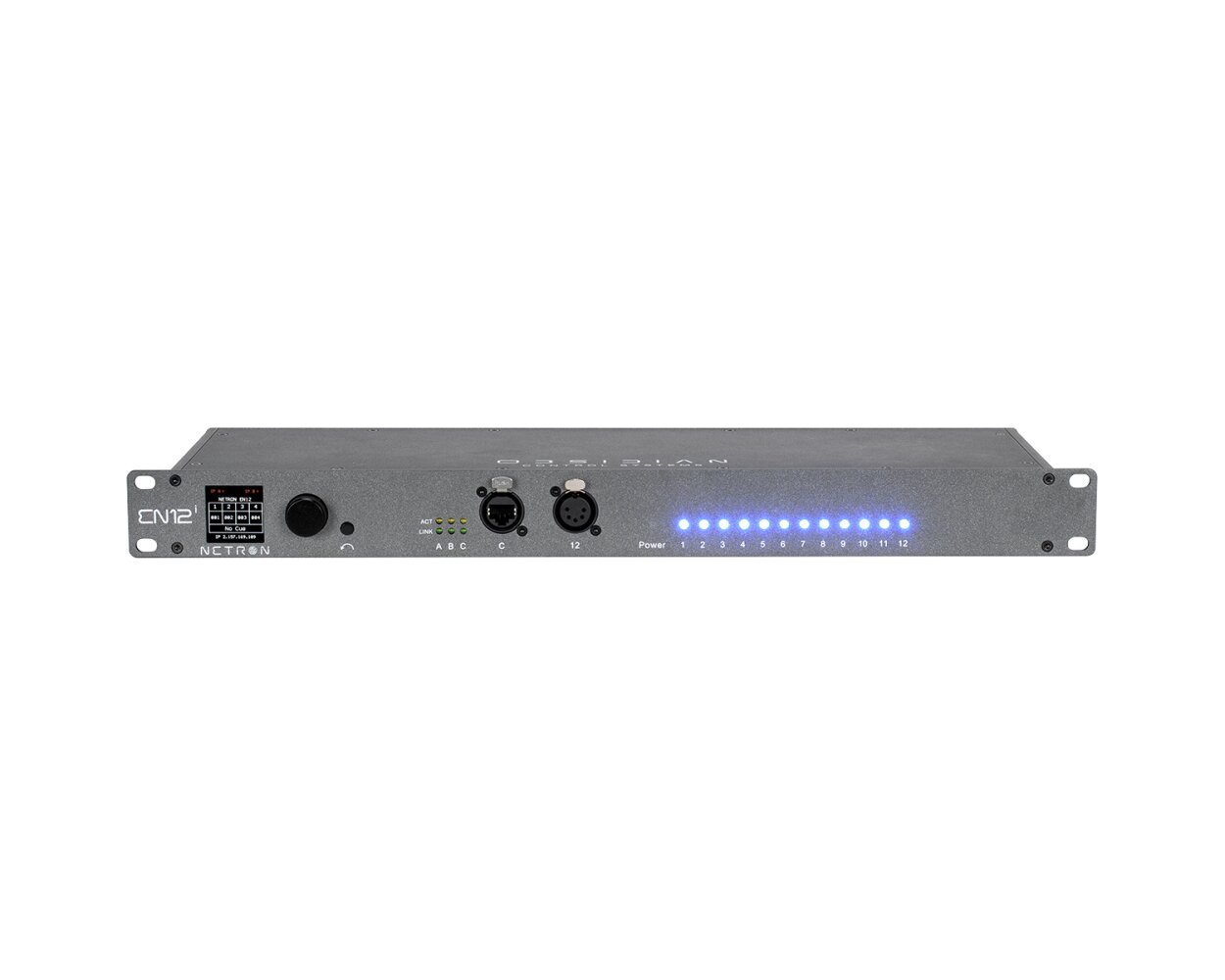

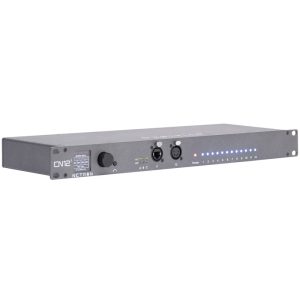

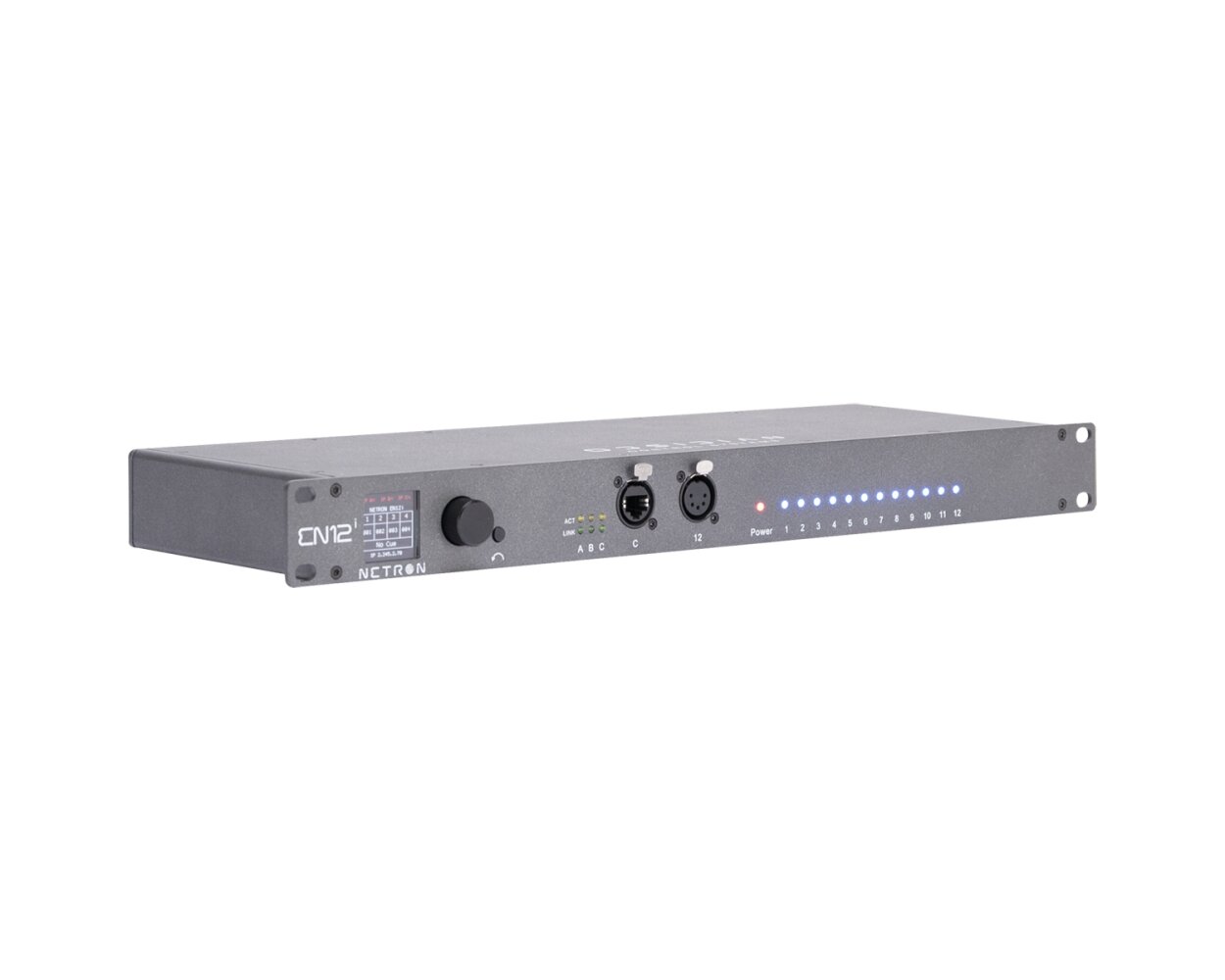

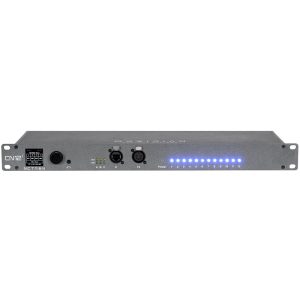

• Front:
• (1) 5pin XLR DMX/RDM port
• Optical and galvanic isolation
• Bidirectional for DMX In and Output
• (1) Locking RJ45 Gigabit Ethernet (Low Latency Switch)
• Full color OLED display
• LED Status feedback array
• Encoder w. Push to Select / Exit Button

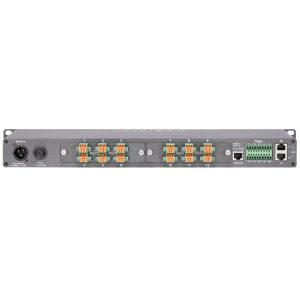

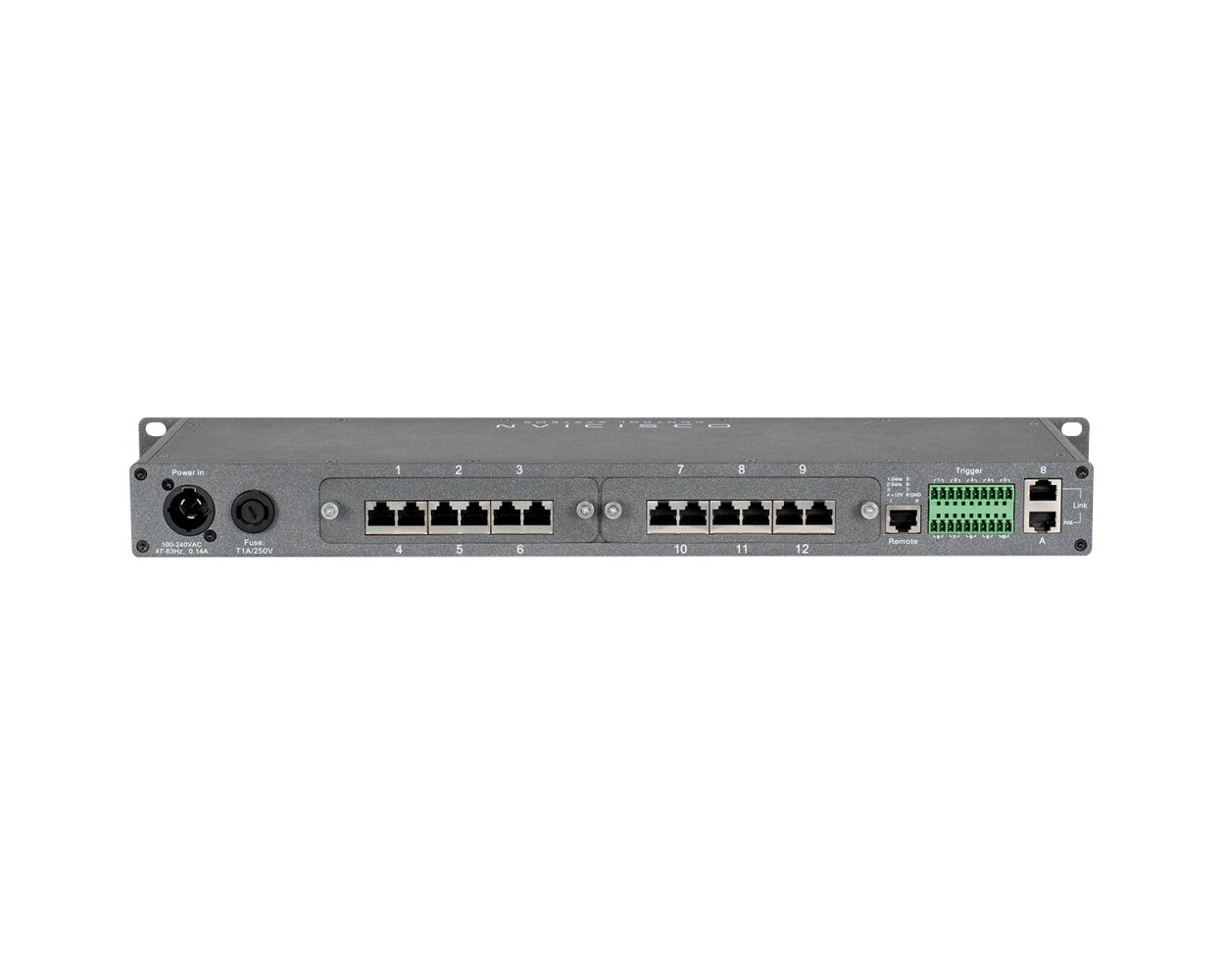

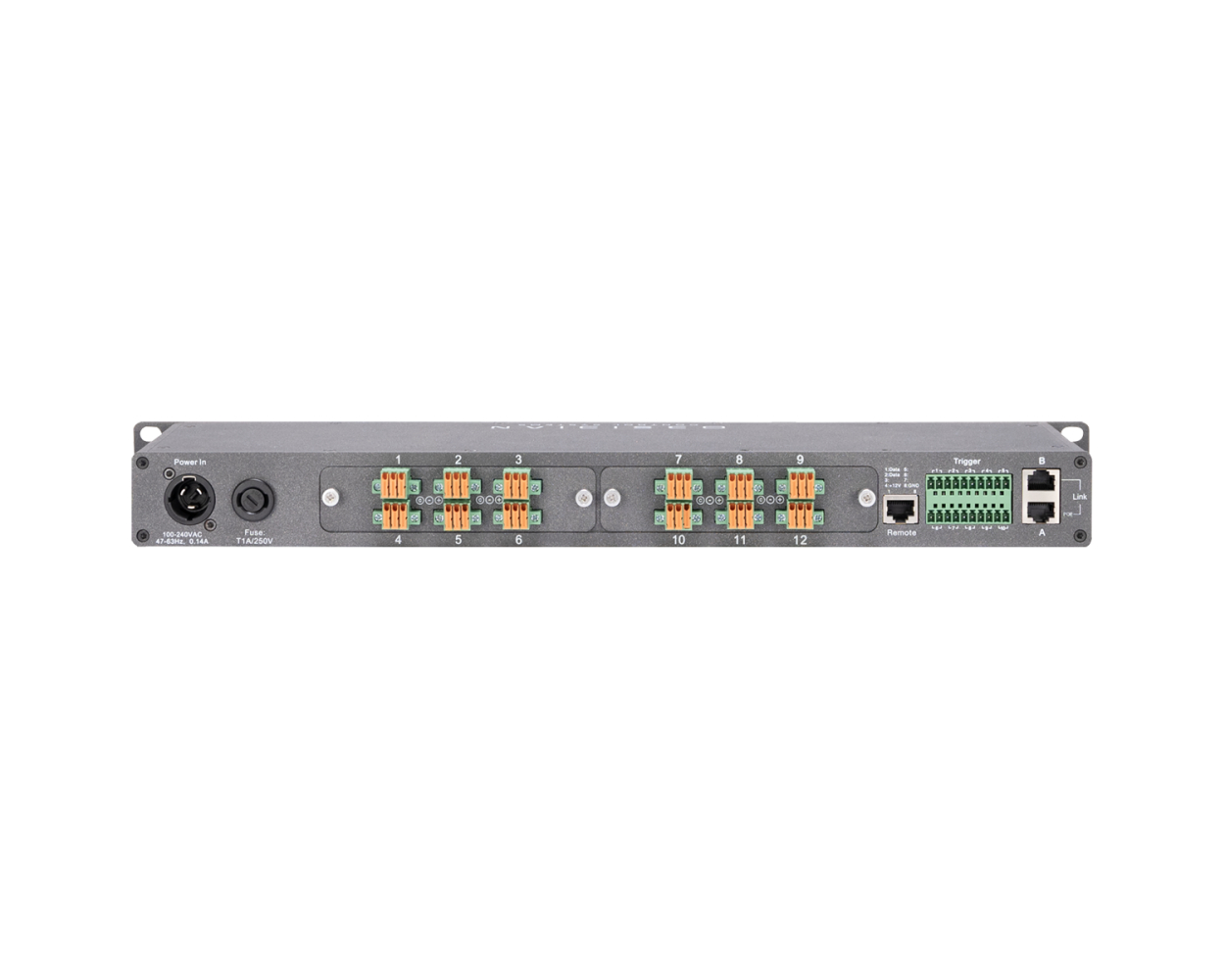

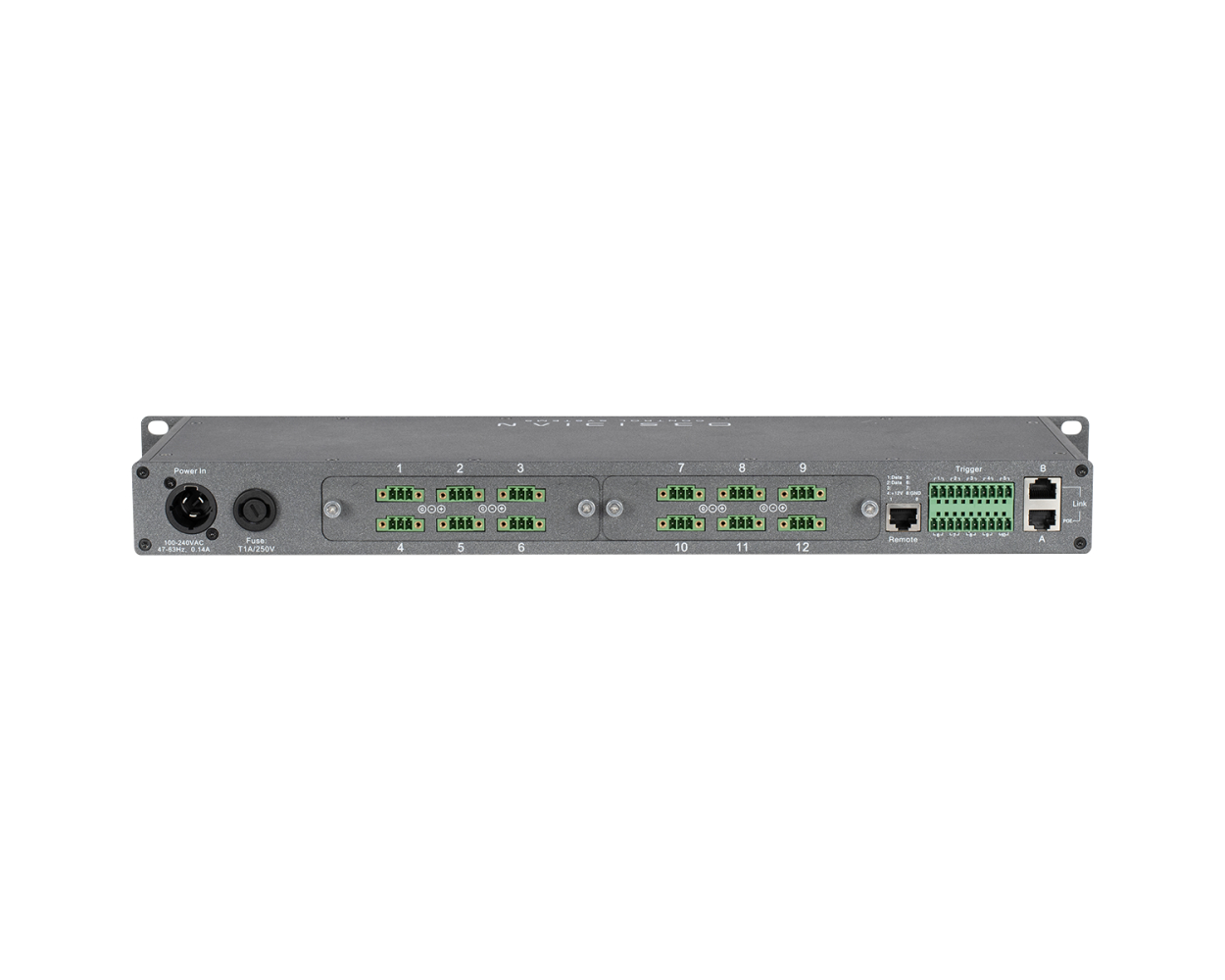

• Back:
• (2) Locking RJ45 Ethernet network (Low Latency Switch)

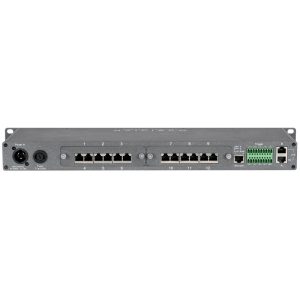

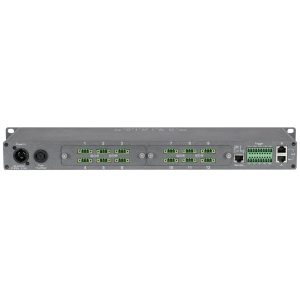

• (2×6) DMX connection plate RJ45 (ESTA) or Terminal Block (DMX In/Out)
• (10) Contact Closures (2x 10pin Terminal Block)
• RJ45 Remote Port for optional BS10 Button Station
• IP65 Locking Power In/Thru
• Connectors:
• Insulation Displacement Connector (IDC) with locking screws,
• 20-22 AWG
• Terminal Wire Connector with locking screws, 20-22 AWG

• Connections

• Front:
• (1) 5pin DMX/RDM optically isolated port
• Bidirectional for DMX In and Output
• Side:
• (2) Locking RJ45 Gigabit Ethernet (1xPOE)
• USB-C power option (5V, 2A)

• Protocols

• Support:
• sACN E1.31
• Art-Net
• DMX512-A E1.11 (In / Out)
• RDM E1.20
• Ethernet Features
• Ethernet Port Speed 10/100/1000Mbps
• VLAN Group Support
• MDI / MDIX Port Sensing
• HTTP Remote Commands (Post, Get)
• HTML Web Remote

• Physical

• Length: 165.8 mm (6.5 in.)
• Width: 482.5 mm (19 in.)
• Height: 44 mm (1.7 in.)
• Weight: 1.8 kg (4 lbs.)

• Electrical

• AC 100-240V nominal, 50/60 Hz
• PoE802.3af
• Power Consumption: 9W

• Approvals / Ratings

• cETLus / CE / FCC / IP20
