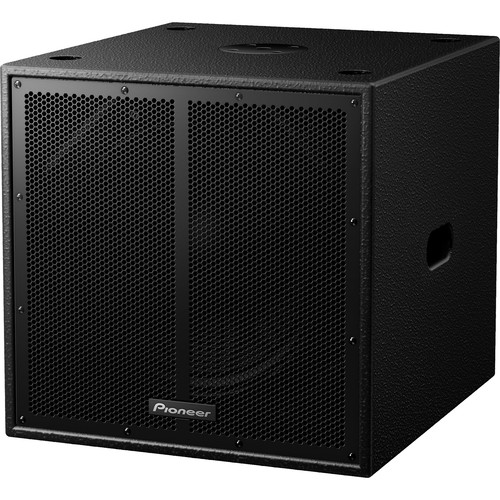

Pioneer Pro Audio XY-115S Bass Reflex Subwoofer – 15″

Features:

• High-power subwoofer with an 15-inch, low-frequency driver
• Capable of reproducing deep bass as low as 45 Hz without distortion
• Strong pillars installed in the cabinet ensure rigidity against the most powerful bass
• Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-122,XY-101 and XY-81)
• NL4 INPUT and LINK OUT connections as standard
• Pole mount for quick set-up with other Pioneer products
• Robust enclosure made from premium multi-laminate birch plywood.

Specifications:

• • Enclosure Type: Single driver, reflex-loaded subwoofer
  • Frequency Response: 45 Hz to 150 Hz
  • Sensitivity (1 W/1 m): 96 dB (half space)
  • Nominal Impedance: 8 Ω
  • Power Handling: 700 W RMS, 1400 W Program
  • Power Handling AES: 124 dB cont., 130 dB peak (half space)
  • Maximum SPL: 116 dB cont., 122 dB peak
  • Dispersion: 90 °H × 60 °V, rotatable

• • Transformer taps:

• • 15 inch (380 mm) neodymium LF cone driver

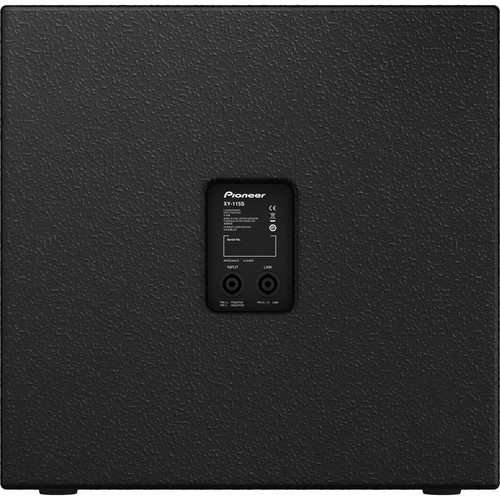

  • Connectors: 2 × Neutrik SpeakON™ NL4
  • Dimensions (W×H×D): 472 × 466 × 510 mm (18.6 × 18.3 × 20.1 inch)
  • Weight: 30 kg (66.1 lbs)

• • Rigging and Hardware:

• • 2 × flush handles (1 left/1 right)
  • 1 × M20 polemount socket for mid/high enclosures
  • 4 × rubber feet (bottom) and 4 ×mating recesses (top)
  • Grille: Hex punched steel
  • Enclosure: 15 mm (0.6-inch) birch plywood
  • Finish: Impact-resistant, Black semi-matt textured

• • Suggested Power Amplifier

• • Recommended : K3DSP
  • Minimum : M30DHDSP

• • Accessories:

• polemount socket cover
• (-W model only)
