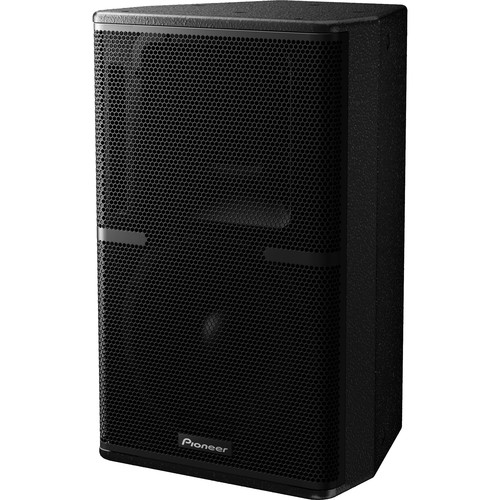

Pioneer Pro Audio XY-122 Two-Way Full-Range Loudspeaker – 12″

Features:

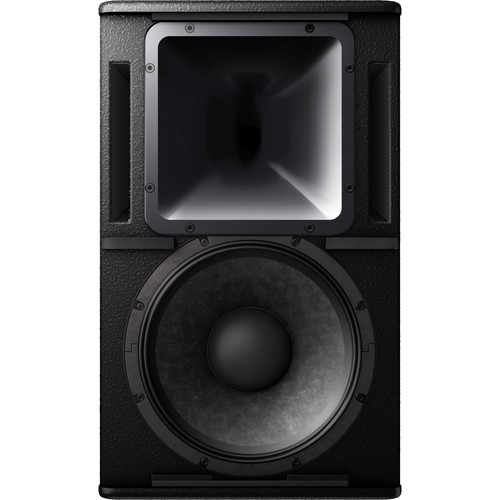

• Two-way full range speaker with 12-inch LF driver and a 1.4-inch compression driver.
• Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments.
• Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation.
• Designed for fixed and mobile applications, with a wide array of flying options.
• Features top hats for quick set-up.
• NL4 INPUT and LINK OUT connections as standard.
• Robust enclosure made from premium multi-laminate birch plywood.
• Impact resistant textured paint finish.

Specifications:

• • Enclosure Type: Two-way passive, reflex-loaded
  • Frequency Response: 70 Hz to 20 kHz
  • Sensitivity (1 W/1 m): 101 dB
  • Nominal Impedance: 8 Ω
  • Power Handling: 400 W RMS, 800 W Program
  • Power Handling AES: 127 dB cont., 133 dB peak
  • Maximum SPL: 116 dB cont., 122 dB peak
  • Dispersion: 90 °H × 60 °V, rotatable

• • Transformer taps:

• • 12 inch (320 mm) neodymium LF cone driver
  • 1.4 inch (36 mm) neodymium HF compression driver
  • Crossover: Asymmetric internal passive crossover
  • Connectors: 2 × Neutrik SpeakON™ NL4
  • Dimensions (W×H×D): 380 × 622 × 360 mm (15 × 24.5 × 14.2-inch)
  • Weight: 23 kg (50.7 lbs)

• • Rigging and Hardware:

• • 8 × M10 threaded mounting points (4 top/4 bottom)
  • 2 × M10 threaded mounting points on rear
  • 4 × M10 threaded mounting points on side (2 left/2 right)
  • 4 × M8 threaded points on rear (for wall mount bracket)

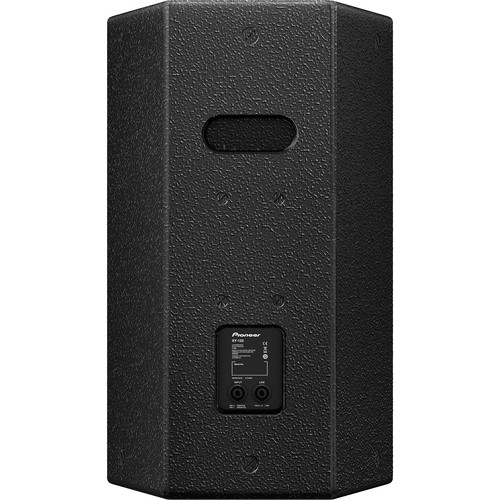

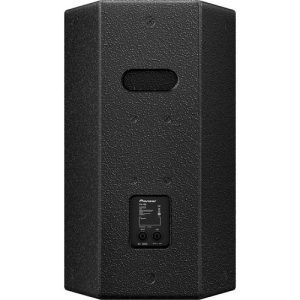

  • 1 × flush handle on rear
  • 1 × 35 mm polemount socket

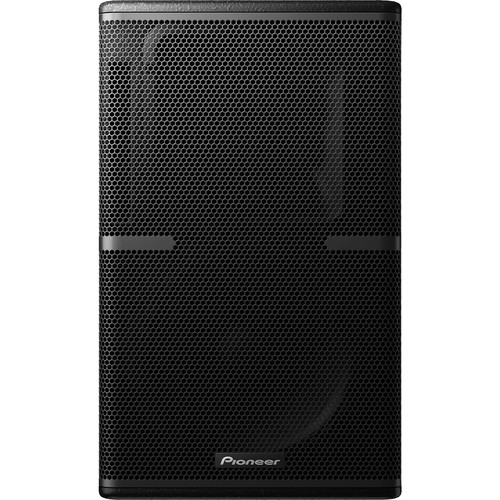

  • Grille: Hex punched steel
  • Enclosure: 15 mm (0.6-inch) birch plywood
  • Finish: Impact-resistant, Black semi-matt textured

• • Suggested Power Amplifier

• • Recommended : K3DSP
  • Minimum : M30DHDSP

• • Accessories:

• polemount socket cover
• (-W model only)
