Q-SYS 7in PoE Touchscreen Controller for In-Wall Mount – Black

Q-SYS TSC-70-G3 is a high-performance, 7-inch network touch screen controller designed for seamless integration within the Q-SYS Ecosystem. It features a projective capacitive (PCAP) multi-touch surface with a 24-bit color display, offering a resolution of 1280 x 800 pixels and a brightness of 400 nits.

$3,173.00
UPC: 684284082701UPC: 684284082701 Brand:

Features of the Touchscreen Controller:

  • Projective capacitive (PCAP) multi-touch surface with 24-bit color display
  • High-resolution display: 1280 x 800 pixels with 400 nits brightness
  • Power over Ethernet (PoE) for simplified single-cable installation
  • Universal mounting options for US and European wall and junction boxes
  • Operates in portrait or landscape orientation
  • Enhanced onboard processor for improved screen transitions and future-ready for upcoming Q-SYS video features
  • Customizable RGB LED status indicators on the sides of the touchscreen
  • Integrated proximity sensor wakes the screen on approach; ambient light sensor adjusts screen brightness
  • Fully customizable user control interface (UCI) creation with Q-SYS UCI Editor

Specifications:

  • Display Type: Projective capacitive (PCAP) multi-touch, 24-bit color
  • Resolution: 1280 x 800 pixels
  • Brightness: 400 nits
  • Panel Dimensions (H x W x D): 4.5 x 7.3 x 1.54 inches (115 x 185 x 39.1 mm)
  • Viewable Screen Size: 7 inches (177.8 mm) diagonal
  • Power: Power over Ethernet (PoE), Class 3

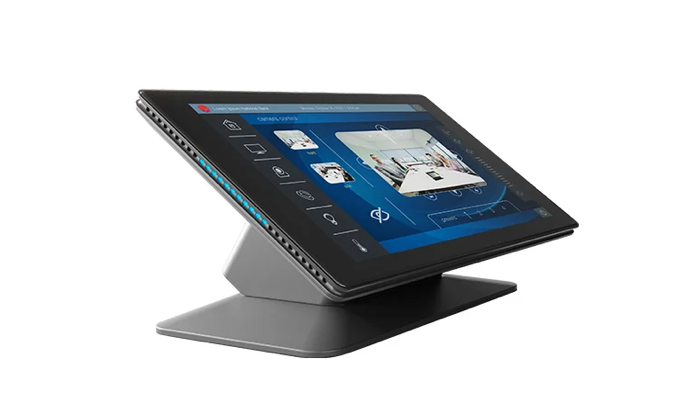

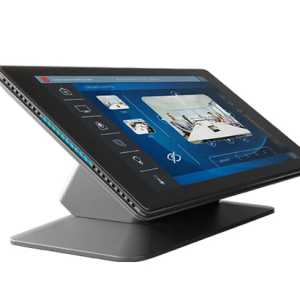

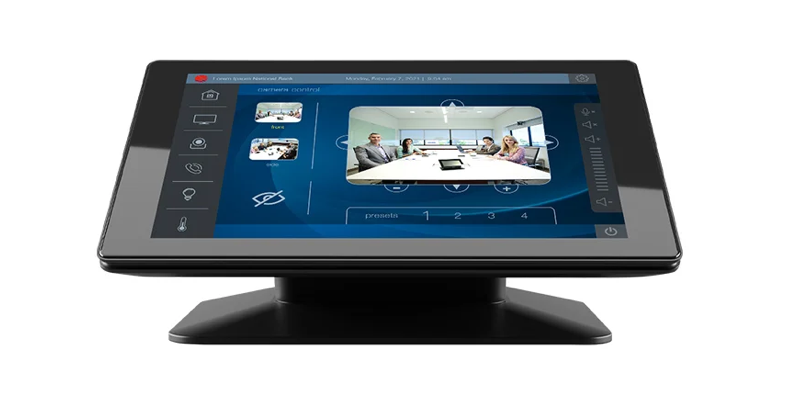

  • Mounting Options: Wall mount with included accessories; table top with optional TSC-710t-G3 accessory
  • Orientation: Vertical or horizontal on wall; horizontal only on stand
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • 1.2 lbs (0.53 kg)
