Q-SYS 8-Inch Two-Way High Power, Blind Mount Ceiling Speakers (Pair)

The Q-SYS AD-C8T-ZB is an 8-in, two-way full_xFFFE_range ceiling-mount loudspeaker with a coaxial compression driver that expands the Q-SYS portfolio to enable a broad range of high-fidelity applications across hospitality, entertainment and beyond.

$1,893.00

Features of the Blind Mount Ceiling Speakers:

  • Zero bezel design for the needs of modern applications
  • Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
  • DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area

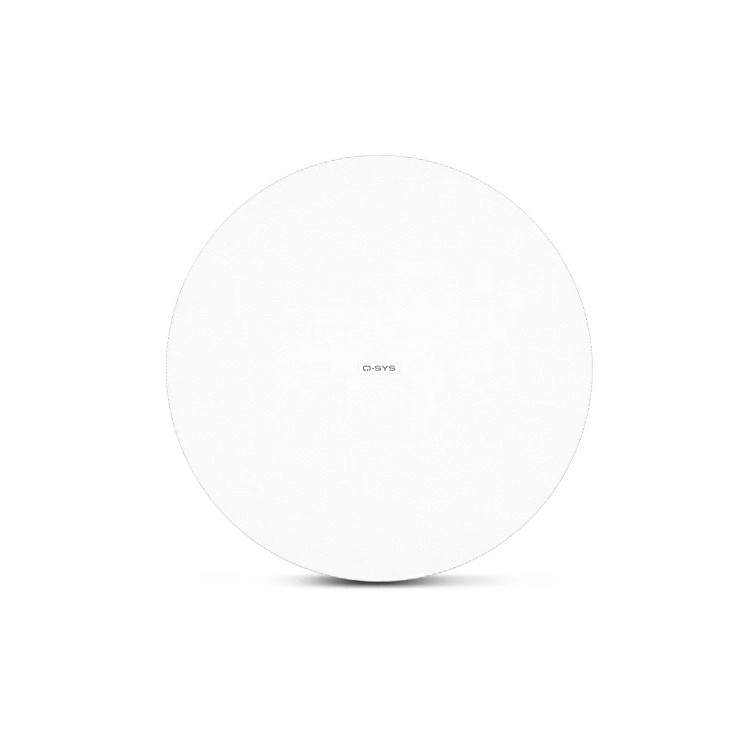

  • Snap-fit magnetic grille

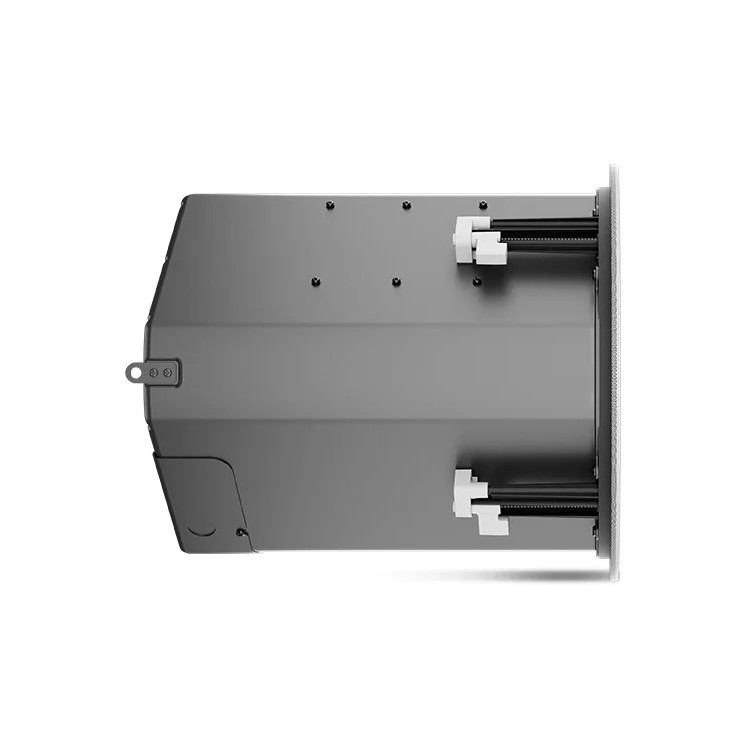

  • 3x double stepped, long travel dog-ear blind mount system
  • Intrinsic Correction voicings available via the Q-SYS Platform including CX-Q amplifiers
  • Blemish-free removable logo
  • Removable conduit cover plate, also available as accessory for pre-install wiring
  • UL1480 and UL2043 certified
  • Available in white (RAL 9003)
  • Complete EASE, CF2, CAD, & BIM information available online

Specifications:

  • LF transducer: 8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite
  • HF transducer: Coaxial compression driver, 1.5 in (38.1 mm) voice coil
  • Enclosure configuration: Two-way, ceiling loudspeaker, Bass Reflex
  • Coverage: 90° conical DMT
  • System bandwidth
  • -3 dB: 70 Hz – 20 kHz
  • -6dB: 63 Hz-20 kHz
  • -10 dB: 58 Hz-20 kHz
  • Sensitivity: 92.5 dB @ 1 W/1 m
  • Maximum SPL (continuous): 114 dB
  • Maximum SPL (peak): 126 dB
  • Maximum SPL (calculated): 121 dB
  • Power rating: Continuous power 200 W @ 8Ω, rated Power 400 W
  • Bypass impedance: 8 Ω
  • Minimum impedance: 6.8 Ω @ 291 hz
  • Transformer taps (70v/100v): 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W
  • Enclosure material: ABS baffle on powder coated steel back-can
  • Enclosure color: Black back-can, white grille (RAL 9010)
  • Connectors: 4-pin 0.2 in (5 mm) Euroblock connector with parallel output
  • Cutout dimension: Ø12 in (Ø305 mm)
  • Dimensions (HxWxD): 13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm)
  • Weight: 23.7 lb (10.75 kg)
